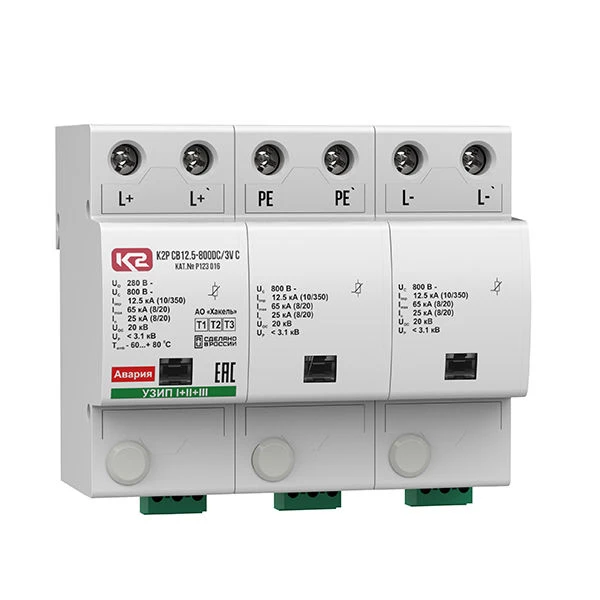

K2R Surge Protection Device for Photovoltaic Systems - 800V DC, Cat. No. R123 016

Three-pole ultrasonic protection device of test classes I, II, III of limiting type for protection of equipment of power circuits of photovoltaic systems. Uc = 800 V DC. Iimp(L-/L+; L/PE)(10/350) = 12.5 kA.

With remote signalling. Installed within 0A(V) - 2 lightning protection zones (in accordance with GOST R IEC 62305-1 and SO-153-34.21.122). They are intended for protection of equipment in low-voltage power distribution systems with air or cable power input.

The device is mounted on a 35 mm DIN-rail by means of a special latch on the rear side of the case.
