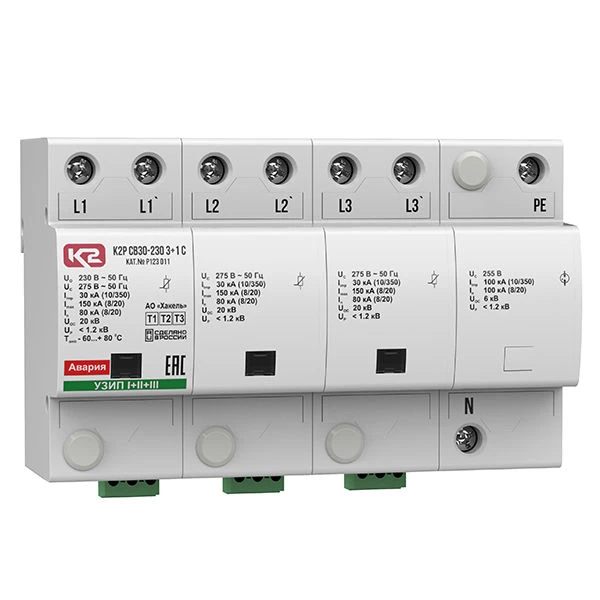

K2R SV30-230 Surge Protection Device for TN-S Systems (30kA)

Four-pole surge arresters of test class I, II, III combined type for networks with earthing system type TN-S. Uo = 230/400 V AC. Iimp(L/N)(10/350)= 30 kA.

Iimp(N/PE)(10/350)= 100 kA. With remote signalling. Installed within 0A(V) - 2 lightning protection zones (in accordance with GOST R IEC 62305-1 and SO-153-34.21.122).

They are intended for protection of equipment in low-voltage power distribution systems with air or cable power input. The device is mounted on a 35 mm DIN-rail by means of a special latch on the rear side of the case.
