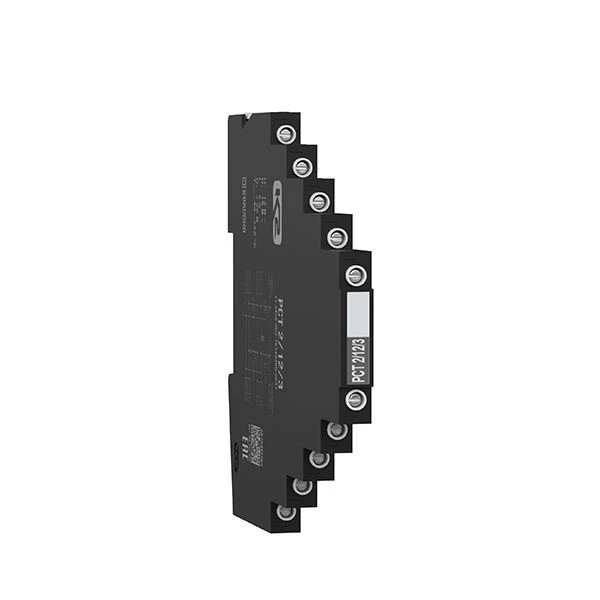

Surge Protection Device PST 2/12/3 for Protecting Data Interfaces

UZIP series RST 2/**/3, TU 3428-002-79740390-2007 are designed to protect the equipment of distributed networks of ACS, ASCUE, digital data transmission interfaces, signal lines of control and measurement systems, as well as for the protection of secondary power supply circuits with rated current up to 3 A from pulse overvoltages (lightning protection, protection from electrostatic discharges, etc.) within 1 - 2 lightning zones.) within 1 - 2 lightning protection zones in accordance with GOST R IEC 62305-1-2010.Capable of passing the rated discharge current In (8/20)= 5 kA, ITotal (8/20)=10 kA. Data transmission speed up to 1 Mbit/s.The devices are placed in the case with thickness of 7,4 mm for installation on DIN-rail 35 mm. The number of protected pairs of conductors - 2.
