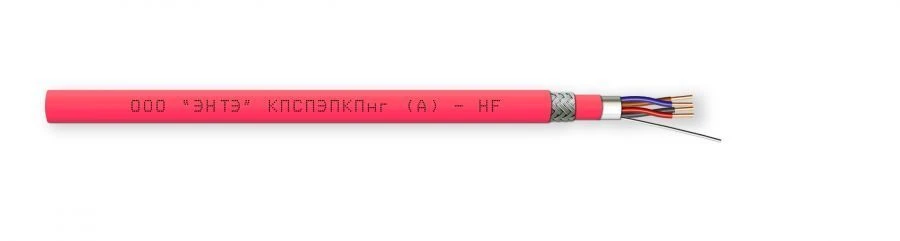

Symmetrical Shielded Data Transmission Cable KPSEPKPng(A)-HF for Reliable Data Communication
Manufacturer:
ENTE LLC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
Cables armoured symmetrical pair twisting for data transmission, with single-wire copper conductive cores with cross-section from 0,20 to 2,50 mm², number of twisted pairs from 1 to 12 or two parallel pairs, with insulation, sheath and protective hose made of halogen-free polymer composition, with a screen of laminated aluminium foil, with armour in the form of a braid of galvanized steel wires, designed for operation at voltages up to 300 V inclusive of alternating current with a frequency of 50 Hz.
Specifications
Ohmic asymmetry of cores in a pair
2 %
Wave impedance
100 ohm
Working capacity
10000000000
Electrical resistance of the circuit (two conductors of a pair)
192 ohm
Electrical resistance of core insulation
100 ohm
Test voltage between conductors
1 kV
Attenuation factor
2
Share your requirements for a quick response!
Instant response in 15 minutes
Best wholesale prices guaranteed
Direct from manufacturer
Delivery & Payment
Shipping Terms
Delivery Time
Sea freight: 30-60 days (depending on destination)
Air freight: 14-21 days (for urgent orders)
Payment Methods
