T-Shaped Rod Clamps for Osteosynthesis - Securely Stabilize Rods

Instrument for stable-functional osteosynthesis. It is used for blocking Schanz rods 4 and 5 mm with a triangular shank in the middle rod apparatus of external fixation (for the shoulder and forearm - under the tube 8 mm). It is made of corrosion-resistant stainless steel.

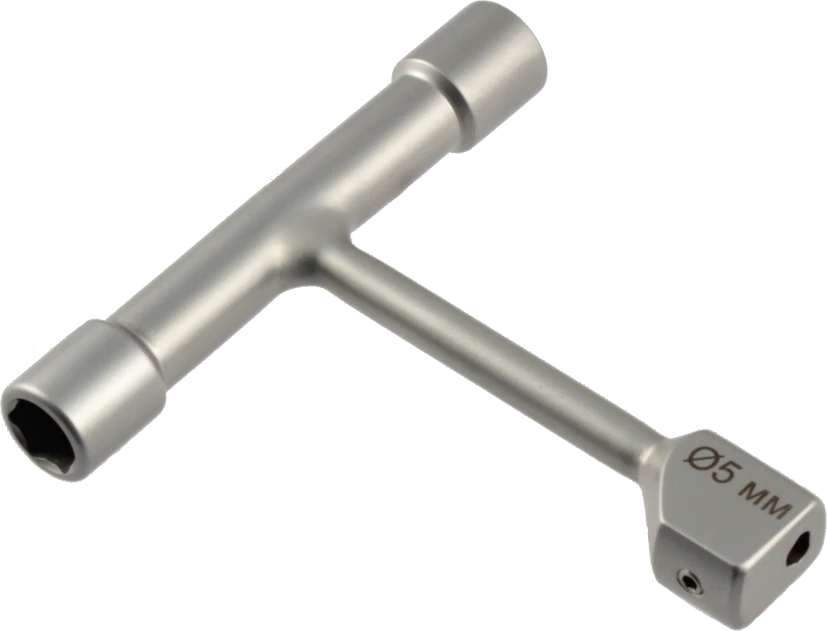

T-shaped handle 12 90 mm. The handle has an internal hexagon S=11 mm on one side and a spanner with an internal hexagon S=10 mm on the other side. The rods are inserted from the end into the drop-shaped hole to a depth of 12 mm.

Spring-ball clamping mechanism. At the end of the drop-shaped hole, perpendicular to its axis, there is a 2 mm through hole. Laser marking of the diameters of the clamped rods, individual marking.

Reusable.
