Available for Import

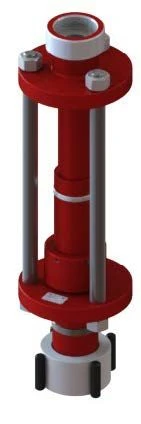

Technological Lubricator LT-OTM-100x21 for Sealing Oil & Gas Wells
Manufacturer:
TSI LLC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
Lubricator technological LT-OTM-100x21 is designed for
sealing of oil and gas wellheads in the process of lowering and lifting of downhole devices, instruments and tools, fixing of oil and gas wellheads.
devices, instruments and tools attached to geophysical cable, coiled tubing,
to provide access to the pipeline and cable during well development, exploration, workover and workover,
well workover and workover operations, as well as for the prevention of
oil and gas blowouts and ensure safe operations, protection of subsoil and the environment.
environment.
sealing of oil and gas wellheads in the process of lowering and lifting of downhole devices, instruments and tools, fixing of oil and gas wellheads.
devices, instruments and tools attached to geophysical cable, coiled tubing,
to provide access to the pipeline and cable during well development, exploration, workover and workover,
well workover and workover operations, as well as for the prevention of
oil and gas blowouts and ensure safe operations, protection of subsoil and the environment.
environment.
Specifications
Diameter of the lubricator bore
100 mm
Working pressure
21 MPa
Test pressure
42 MPa
Connection dimensions
Top Hole Ø153 for nipple Ø152,6; male thread 8,25-4-ACME-2G/ANSI B1,5
Connection dimensions
Bottom Nipple Ø152,6; female thread of cap nut 8,25-4-ACME-2G/ANSI B1,5
Height
1406 mm
Width
400 mm
Weight
302 kg
