Thermoelectric Cable for Temperature Measurement - Model TERK ng(A)-HF
All Categories

Categories

Language

Quick Links

WhatsApp Inquiry
Thermoelectric Cable with Metal and Alloy Conductors TERK ng(A)-HF ** xx PEKAvailable for Import

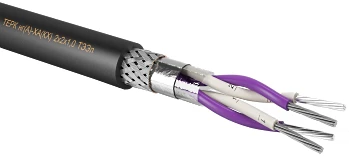

Thermoelectric Cable with Metal and Alloy Conductors for Precision Temperature Measurement

Thermoelectrode Cables
Manufacturer:DONKABEL LLC
Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Available Models

Thermoelectrode cable with conductors made of metal and alloy or alloy pair TERC ng(A)-LS ** xx EVEKThermoelectrode cable, with cores made of metal and alloy or alloy pair TERC- ** xx EVEThermoelectrode cable, flameproof, with conductors made of metal and alloy or alloy pair TERC ng(A)-FRLS ** xx EVKThermoelectrode cable, flameproof, with conductors made of metal and alloy or alloy pair TERC ng(A)-FR ** xx ETECThermoelectrode cable, flameproof, with conductors made of metal and alloy or alloy pair TERC ng(A)-FRHF ** xx EPE
Thermoelectrode cable, with cores made of metal and alloy or alloy pair TERC ng(A)-HF ** xx EPECThermoelectrode cable, with conductors made of metal and alloy or alloy pair TERC ng(A) ** xx TThermoelectrode cable, flameproof, with conductors made of metal and alloy or alloy pair TERC ng(A)-FR ** xx TEBThermoelectrode cable, with cores made of metal and alloy or alloy pair TERK- ** xx VThermoelectrode cable, flameproof, with cores made of metal and alloy or alloy pair TERC ng(A)-FRHF ** xx EPKThermoelectrode cable with cores made of metal and alloy or alloy pair TERC- ** xx EVEThermoelectrode cable with conductors made of metal and alloy or alloy pair TERC ng(A)-LS ** xx EVKThermoelectrode cable, flameproof, with conductors made of metal and alloy or alloy pair TERC ng(A)-FRHF** xx EPEBThermoelectrode cable with cores made of metal and alloy or alloy pair TERC ng(A)-LS ** xx EVThermoelectrode cable with cores made of metal and alloy or alloy pair TERK- ** xx WTECThermoelectrode cable with cores made of metal and alloy or alloy pair TERC ng(A)-LS ** xx EVBThermoelectrode cable with cores made of metal and alloy or alloy pair TERC ng(A)- ** xx VThermoelectrode cable, flameproof, with conductors made of metal and alloy or alloy pair TERC ng(A)-FR ** xx TEThermoelectrode cable with cores made of metal and alloy or alloy pair TERC ng(A)- ** xx EVThermoelectrode cable with cores made of metal and alloy or alloy pair TERC ng(A)-LS ** xx VEBThermoelectrode cable, flameproof, with conductors made of metal and alloy or alloy pair TERC ng(A)-FRHF ** xx PC

Description

Thermoelectrode cables, extension and compensation cables, with cores of metal and alloy or alloy pairs, with nominal cross-section from 0,20 to 4,0 mm2, with number of cores from 2 to 40, with number of pairs from 1 to 40, for application in AC networks with nominal voltage up to 250 V with frequency 50 or 60 Hz, or DC up to 375 V inclusive

Specifications

Insulation material
Halogen-free polymeric materials
Nominal core cross-section
0,2-4,0 mm²
Number of pairs
1...40 pcs
Number of cores
2...40 pcs
Design feature
in a common shield, in wire armor
Operating temperature
- 50 to +70 °C
Operating temperature with XL index
From -60 to +70 °C
Operating temperature with index EHL
-70 to +70 °C
Additional designs
UV
Additional designs
?
Additional designs
ZG
Sheath material
Halogen-free polymeric materials

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.

Save Your Time

Share your requirements for a quick response!

Instant response in 15 minutes
Best wholesale prices guaranteed
Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, RussiaCIF Available to major ports worldwideEXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C)Wire Transfer (T/T)Escrow Services
