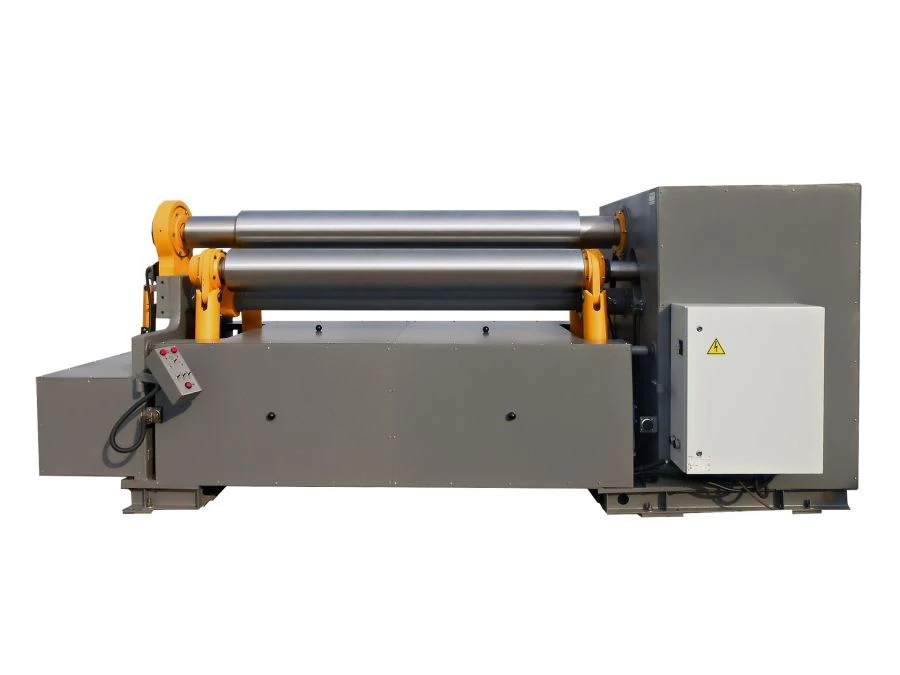

Three-Roller Bending Machine IB 2222 for Precision Sheet Metal Bending

Metal Bending Machines

Manufacturer: Promstroymash LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Machines sheet bending three-roll series IB 2222 are designed for bending cylindrical blanks from sheet material with yield strength t = 250 MPa (25 kgf/mm.kv.) with a sheet thickness up to 12-16 mm. and width of 2000mm. in the cold state.

The machines are allowed to bend conical blanks from sheet material if they are equipped with the appropriate fixture. The dimensions of conical blanks are regulated by the technical documentation on the machine. In order to expand the technological capabilities of the machine can be equipped with tools for bending angles, strips, squares, pipes, channels.

Specifications

Type of product according to PP RF 616

Metal bending machines

The greatest thickness of the bending plate made of material with yield strength t=250 MPa (25 kgf/mm2):

The greatest thickness of the sheet to be bent when bending from material with yield strength t=250 MPa (25 kgf/mm2):

B1/B8 2100/900 MHz

Sheet width

2000 mm

Smallest bending radius

240 mm

Diameter of top roll

270 mm

Main motor power

11 kW

Main motor speed

970

Electric motor power of the roll adjustment drive motor

5.5 kW

Speed of the electric motor of the roller adjustment drive motor

720

Tilt support drive motor capacity

1.1 kW

Frequency of rotation of the tilt support drive motor

920

Motor power of the support mechanism

0.75 kW

Support motor motor speed

700 kW

Electric motor power of the product removal mechanism

1.5 kW

Rotational speed of the electric motor of the product removal mechanism

1410

Machine weight with means of mechanization

9800 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
