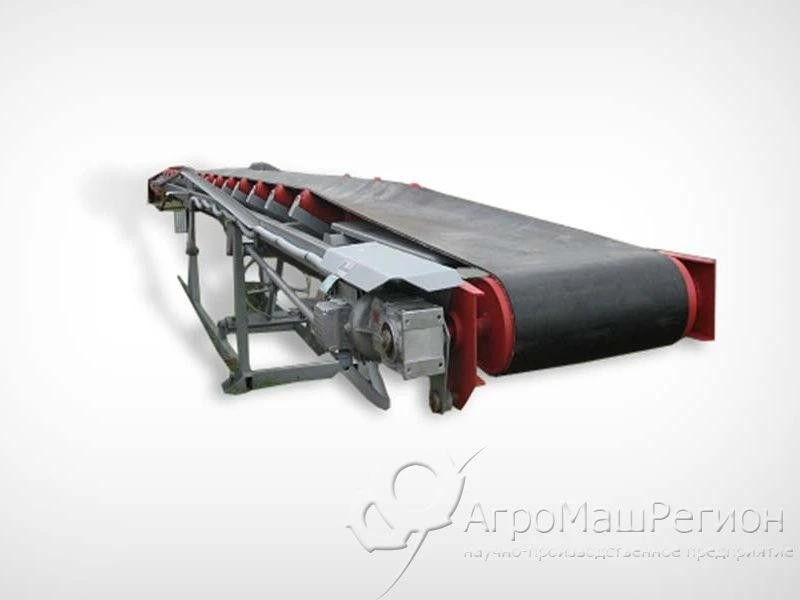

TS-65-U Type Belt Conveyor for Efficient Bulk and Unit Load Transport

Belt conveyors - a type of continuous transport used for horizontal mechanical transport of bulk and piece goods. Conveyor TC- can be used for work on elevators, bread-receiving stations, as well as in other places for the mechanical Conveyor is a stationary transporting device of continuous action with a working traction organ - a conveyor belt, a moving conveyor belt. conveyor belt moving on rollers.

The drive section is a frame of welded constitution made of angle, on the frame is mounted a drive drum and a motor-reducer. The drive drum is rotated by a gearmotor. The tensioning section is a welded frame made of angle steel and channel.

On the frame is mounted: tension drum with tensioning device. The middle section of the welded structure consists of struts and longitudinal angles. longitudinal angles.

On top of the longitudinal brackets are fixed by clamps frames with grooved and straight roller bearings. The sections are connected to each other by means of bolted joints. Grooved roller supports are designed to support the grooved branch of the conveyor belt, to give it a grooved shape and to support the saving branch.

Two straight and four grooved roller supports are installed on each middle section. Working principle: when the driving section is switched on, the conveyor belt moves along the roller supports, transporting the load coming to it through the receiving chute of the tensioning section. The product is discharged at the belt turn, enveloping the drive drum.

3 Loading of the conveyor is carried out by a loading unit installed in a chain with the conveyor.
