TS-SCAN 40113 BP Conveyor X-Ray Scanner for Cargo Inspection

Available for Import

Introscope of conveyor type TS-SKAN 40113 BP

Radiation Inspection Devices

Manufacturer: DIAGNOSTIKA-M LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

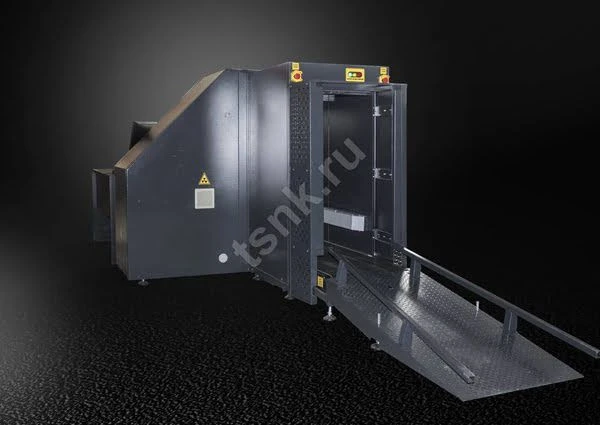

The X-ray introscope TS-SKAN 40113 BP is a single-projection introscope of conveyor type, designed for inspection of carts/pallets with on-board power supplied to the aircraft.

The design feature of this introscope is a special sized tunnel window that allows for the inspection of on-board powered carts/semi-trucks to detect dangerous or prohibited items.

The tunnel window has automatic shutters instead of the usual X-ray protection shutters, which provide: <ul> <li>- convenient and safe passage of carts/semi-carts with on-board power supply through the inspection tunnel;</li> <li>reducing the duration of inspection of objects.</li> </ul> The unit has small dimensions due to the unique design of detectors, which allows its use in tight spaces.

Specifications

Conveyor height from the floor, mm

320 mm

Maximum dimensions of the object (WxWxH),mm

420x1100 mm

Tunnel size, mm (WxHxH),mm

406x1136 mm

Type of product according to PP RF 616

Other tools and instruments for measurement, inspection and testing

Type of product according to PP RF 616

Other instruments and apparatus for measuring, controlling and testing; Instruments and apparatus other for measuring, controlling and testing

Product weight

1600 kg

Overall dimensions (DxWxH), mm

3450x1750x1560 mm

Power consumption, kW

3 kW

Number of beams (angles)

Work cycle

Round-the-clock

Maximum/operating current, A

0,002/0,0015 A

Maximum/operating voltage, kV

200/180 kV

Penetration capacity (steel), mm

guaranteed 28, typical 30 mm

Resolution (by wire), mm

38 AWG (0.1 mm) guaranteed, 40 AWG (0.08 mm) typical. mm

Maximum uniform load on the conveyor, kg

200 kg

Conveyor speed, m/sec

0.2

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
