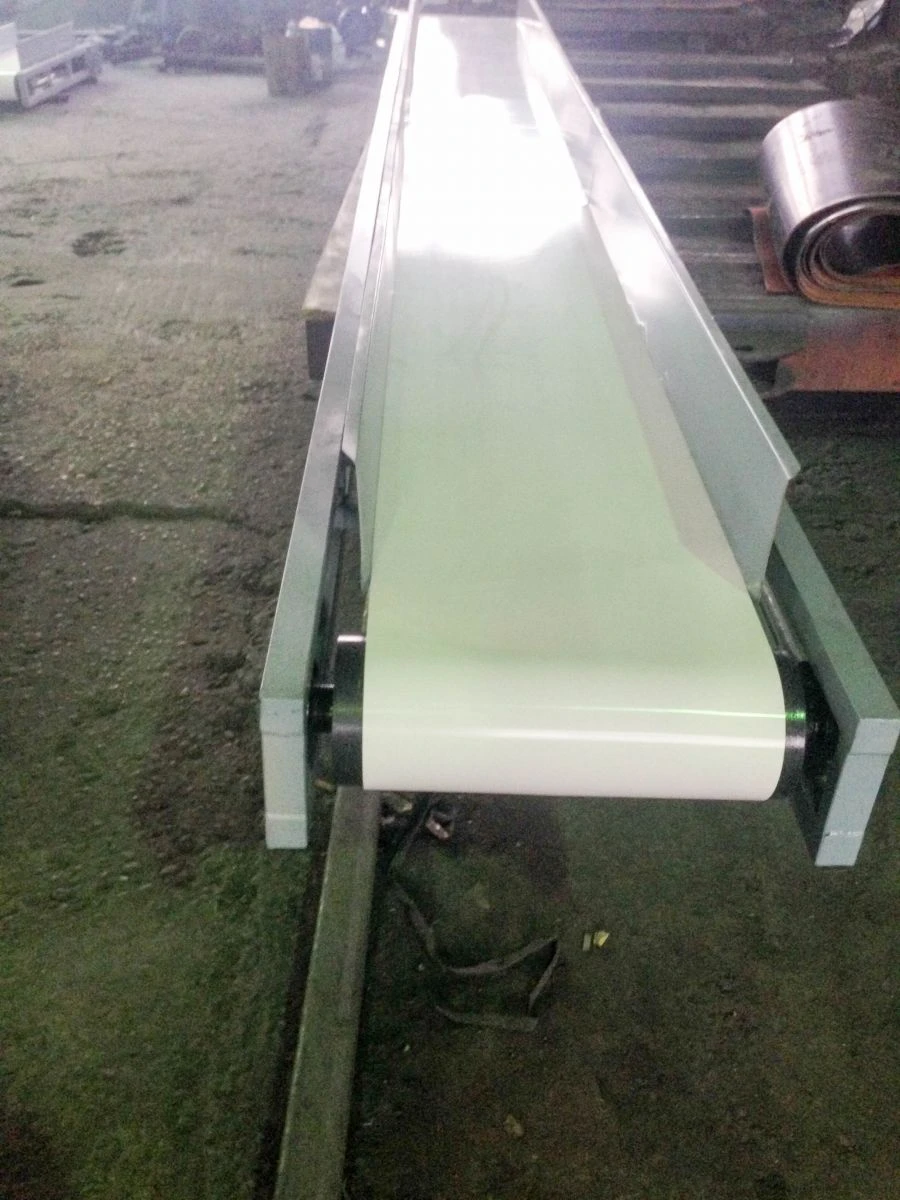

TS Series Conveyor Belt for Food Industry Model TS-500-01 - Efficient Bulk Material Handling

Conveyor belt series TC is designed to move oilseeds, grain and grain products and other bulk goods at an angle of up to 5 degrees. Conveyor is a stationary conveying device of continuous action with a working traction organ: - conveyor belt moving on rollers. The device of the belt conveyor.

• - Drive station is a frame of welded construction from angle steel, on the frame mounted drive drum, motor-reducer and clutch.
• The tensioning station is a welded frame made of angle steel. On the frame are mounted: tension drum with screw tensioning device; receiving tray with rubberised aprons attached to the bottom.
• The middle and inclined sections of welded construction are made of angles. They have holes at the edges for fastening between each other (as well as with the drive and tensioning stations).

  The sections are bolted together through strips.</li> <li>Conveyor roller supports are designed to support the load branch of the conveyor belt, to give it a grooved shape and to support the runaway branch.</li> </ul>Two straight and three grooved roller supports are installed on the middle and inclined sections. Working principle of belt conveyor TC When the drive station is switched on, the conveyor belt moves along the roller supports, transporting the load coming to it through the receiving chute of the tensioning station. Product discharge takes place on the belt turning round the drive drum.

  Loading of the conveyor is performed by loading units installed in a chain with the conveyor. The total length of the conveyor depends on the number of middle sections installed in the line.
