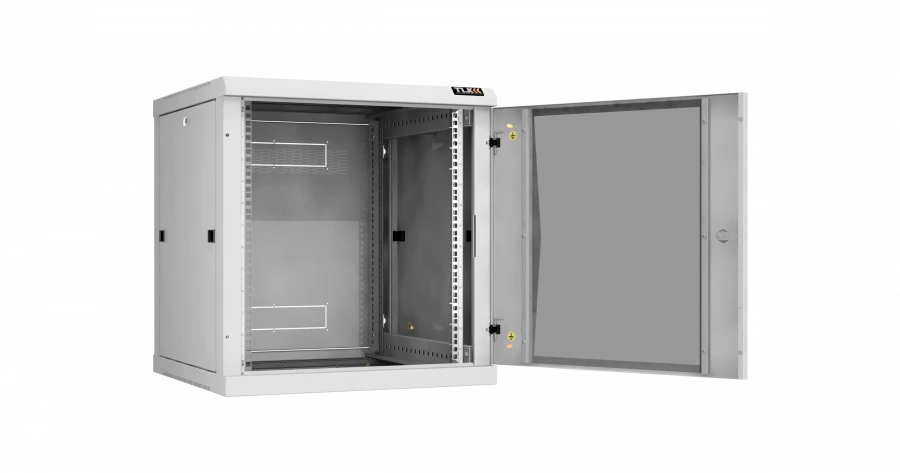

TWC Series Telecommunication Cabinet - Classic II Model

Available for Import

TWC Series Telecommunication Cabinet for Active and Passive Equipment

Metal Storage Cabinets

Manufacturer: TLK LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Wall single-section cabinets series "Classic II" TWC-R - a functional solution designed to accommodate active and passive telecommunications equipment, inside residential, office and technical premises. Wall cabinets are used where the use of floor cabinets is inexpedient. The peculiarity of the TWC-R series wall cabinets is the collapsible design.

Easy assembly is ensured by pre-installed components and fittings. The door can be hinged on the left or right side. The door with an opening angle of more than 180 degrees and removable side walls provide convenient access to the cabinet from three sides for installation and maintenance of equipment.

In the roof instead of a removable perforated plug, it is possible to install as an accessory one of the TLK fan units for two fans for wall cabinets. The cabinet is made in the 482.6 mm GOST 28601.2-90 (19-inch IEC 297-2 standard).

Specifications

Depth

600 mm

Type of product according to PP RF 616

Metal cabinets other

Type of accommodation

Wall-mounted

Maximum distributed load

60 kg

Height, U

Frame type

collapsible

Height

370...904 mm

Width

600 mm

Color

Light gray (RAL 7035), Black (RAL 9005)

Assignment

Telecommunication wall cabinet

Weight

20.7...41.4 kg

Material

Cold-rolled steel

Degree of protection

IP20

Type of floor support

Availability of fasteners to the support (pole)

Type of front door(s)

Single leaf door. With infill: metal, glass.

Type of rear door(s)

Blind wall. With filling: metal.

Usable depth

540 mm

Type of side panels

Detachable, lockable, single. Filling: metal.

Type of door lock

Single-point locking locks

Front door material

Cold-rolled steel 1.2 mm

Rear door material

Cold-rolled steel 1.2 mm

Side panel material

Cold-rolled steel 1.2 mm

Frame material

Cold-rolled steel 1.5 mm

Material of mounting profiles

Galvanised galvanised steel 1.5 mm

Type of coloring

Powder-coated, impact-resistant, polymer-epoxy coating

Glass

Tempered, tinted in mass (5%), 4 mm

Wall-mounted swivel section

Option

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
