Ultrasonic Doppler Blood Flow Velocity Analyzer with Dual-Channel Echoencephalography Functions for Accurate Medical Diagnostics

Ultrasound Diagnostic Devices

Manufacturer: ENGINEERING CENTER "COMPLEX-M" LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

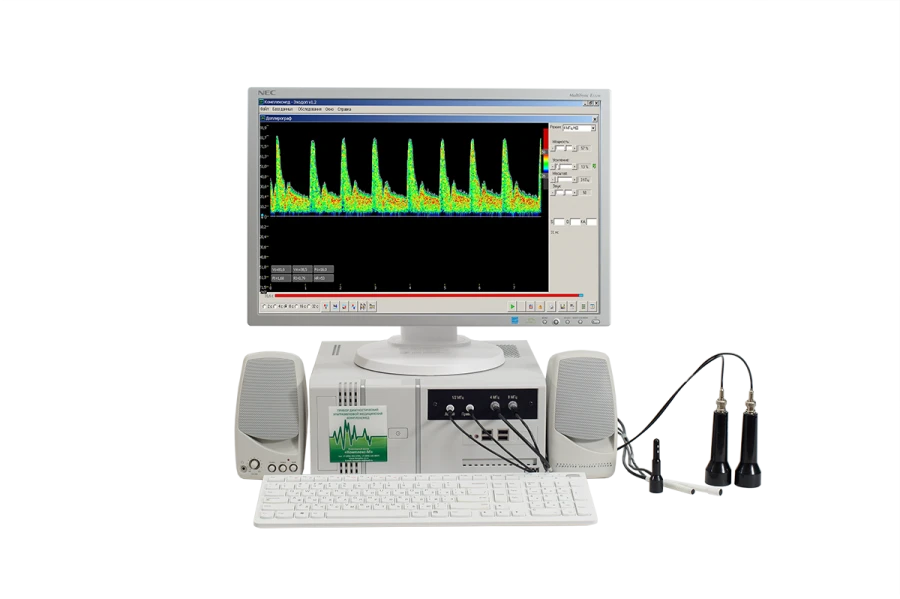

Analyser ultrasonic Doppler blood flow velocity with functions of two-channel echoencephalograph, computerised in stationary computer case.

Specifications

Number of Doppler channels

4 pcs

Measured velocity range of the Doppler system, cm/sec

-400...400

Probing depth

5...120 mm

Radiation amplitude in transcranial mode of Doppler system, not more than

25 V

Number of automatically calculated Doppler system parameters

10 pcs

Sound reproduction of Doppler frequencies with separation by blood flow direction

Armoured glass

Spectral analysis of Doppler signal + envelope

Armoured glass

Automatic saving of the signal spectrogram (Doppler system) in the memory

The last 32

Freeze frame (Doppler system)

Armoured glass

Multi-window operation mode (Doppler system)

Armoured glass

Number of channels of the echoencephalography system

2 pcs

Operation modes of the echoencephalographic system

A+A echograms

Probing depth of the echoencephalographic system

220 mm

Radiation amplitude of the echoencephalographic system, not more than

100 V

Radiation frequency of the echoencephalography system

Resolution capacity of the echoencephalographic system

2 mm

Measurement error of linear dimensions of the echoencephalographic system

0.2 mm

Number of automatically calculated parameters of the echoencephalographic system

17 pcs

Multi-window operation mode of the echoencephalography system

Armoured glass

Automatic generation of a transmission tag (echoencephalographic system)

Armoured glass

Freeze frame of the echoencephalographic system

Armoured glass

Automatic saving of the echogram in the memory

The last 32

Automatically saves user settings at shutdown

Armoured glass

Saving the survey results in the database and printing them out

Armoured glass

Structural design

Stationary version, the device is built into a desktop personal computer

Power supply voltage

220 V

Complexmed" software

Armoured glass

Research modes of the Doppler system

1. transcranial: using a 2MHz probe

Sampling volume in transcranial mode of the Doppler system

3...20 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
