Universal Diagnostic Meter for Corrosion Protection "Diacor" - Essential for Pipeline Inspection
Manufacturer:
CHIMSERVICE CJSC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description

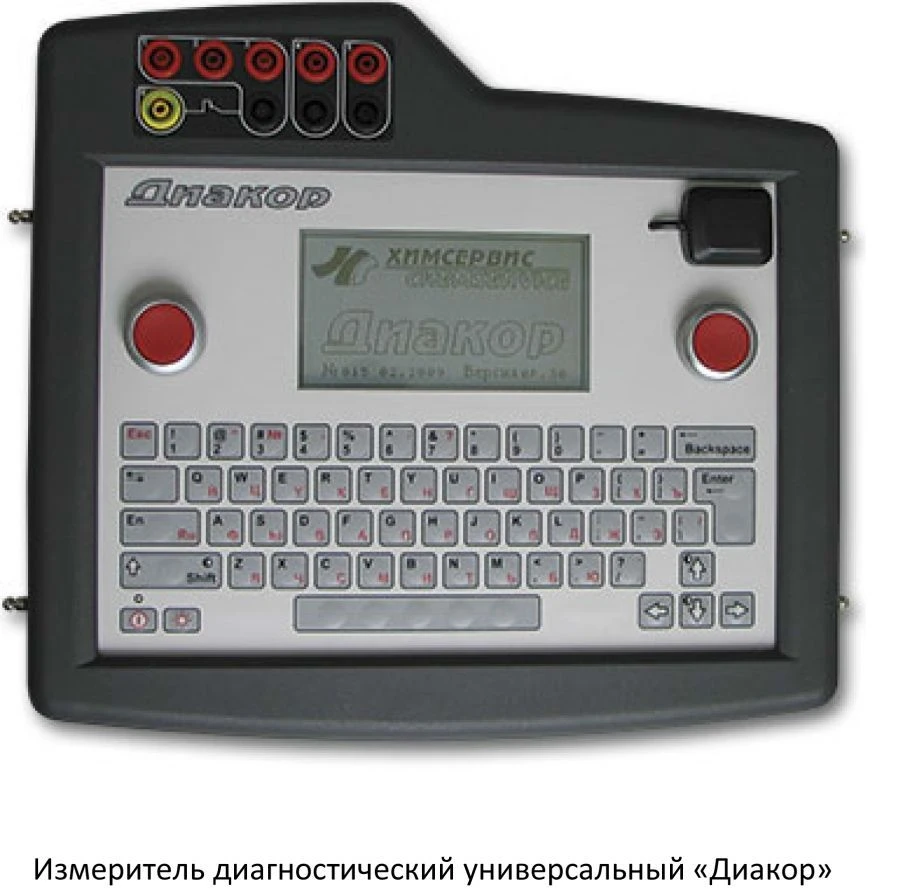

The diagnostic universal meter "Diakor" is designed for diagnostics of the state of anticorrosion protection of underground pipelines and control of electrochemical protection systems.
The device provides:
- measurement of DC and AC voltages;
- measurement of direct current;
- signal waveform observation (oscilloscope mode);
- determination of current coordinates and current time using the built-in navigation receiver;
- determination for underground metal communications by induction method with the help of external, separately supplied, search module of the trace detector: axis; depth of occurrence; alternating currents flowing in them;
- indication on the liquid crystal graphic display (LCD) of the measured parameters;
- registration of the measured parameters in the instrument memory;
- storage of measured parameters of signals;
- transfer of the stored parameters to a personal computer (PC).
The device provides:
- measurement of DC and AC voltages;
- measurement of direct current;
- signal waveform observation (oscilloscope mode);
- determination of current coordinates and current time using the built-in navigation receiver;
- determination for underground metal communications by induction method with the help of external, separately supplied, search module of the trace detector: axis; depth of occurrence; alternating currents flowing in them;
- indication on the liquid crystal graphic display (LCD) of the measured parameters;
- registration of the measured parameters in the instrument memory;
- storage of measured parameters of signals;
- transfer of the stored parameters to a personal computer (PC).
Specifications
Nutrition
from built-in battery or external mains adapter
Type of product according to PP RF 616
Instruments and other instruments for measurement, control and testing
Number of measurement channels
6 pcs
DC voltage measurement ranges
-100...100 V
AC voltage measurement ranges
0...1 V
Frequency bandwidth for AC voltage measurement
45...2000
DC current measurement ranges
-9999...9999 A
Measurement scale digit capacity
4
Level of suppression of industrial noise with frequency 50 and 100 Hz, not less than
40
Input impedance, not less than
10000000 ohm
Operating time without recharging from the battery, not less than
15
PC communication interface
USB
Installed Flash memory capacity
32
Operating temperature range
-10...50 °C
Degree of protection against external influences
IP65 according to GOST 14254
Service life, at least
5 year
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
