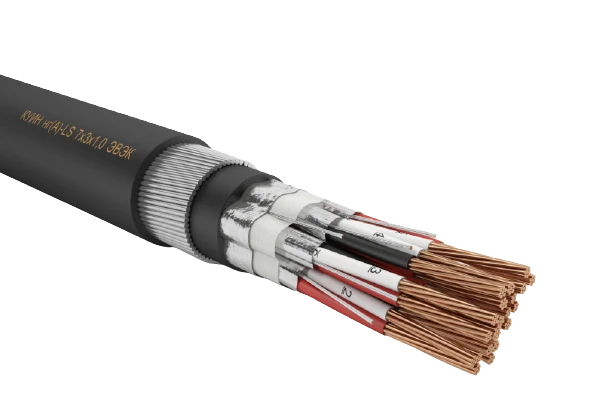

Universal Fire-Resistant Instrument Cable with Copper Conductors KUIHng(A)-FRHF xx ERapEB

Available for Import

Universal Fire-Resistant Instrument Cable with Copper Conductors KUIHng(A)-FRHF for Safety Applications

Installation Cables

Manufacturer: DONKABEL LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Universal instrumental cables with copper or tinned copper conductors KUINng(A) xx ETE Universal instrumental cable, flameproof, with copper or tinned copper conductors, mark KUINng(A)-FRHF xx PE Universal instrumental cable, fire-resistant, with copper or tinned copper conductors, mark KUINng(A)-FRHF xx PSEB Universal instrumental cables, fire-resistant, with copper or tinned copper conductors KUINng(A)-FR xx ETK Universal instrumental cable, fire-resistant, with copper or tinned copper conductors, mark KUINng(A)-FRHF xx EREP

Universal instrumental cable, fire-resistant, with copper or tinned copper conductors, mark KUINng(A)-FRHF xx RepEK Universal instrumental cables, fire-resistant, with copper or tinned copper conductors KUINng(A)-FR xx TE Universal instrumental cable, flameproof, with copper or tinned copper conductors, mark KUINng(A)-FRHF xx EP

Description

Universal instrumental cables, fire-resistant, with copper or copper tinned cores, with insulation made of ethylene propylene rubber, with a sheath made of halogen-free polymer composition, with individual and common shields, in tape armour, designed for data transmission in the frequency range up to 4 MHz in measuring, control and regulating equipment, control and regulating equipment, as well as for connection of AC electrical equipment with rated voltage up to 690 V and standard frequency 50 or 60 Hz or DC electrical equipment with rated voltage up to 1000 V, are also intended for laying in premises, cable constructions, channels, tunnels, ground (trenches), including places exposed to the influence of the influence of the influence of halogens, halogen-free, with individual and common screens, tape armour.including places exposed to stray currents

Specifications

Fire hazard class

P1b.1.1.1.2.1.

Core material

Copper

Insulation material

ethylene propylene rubber

Sheath material

halogen-free polymer composition

Length

manufacture of products in the lengths required by the customer m

Gasket type

designed for laying in premises, cable constructions, channels, tunnels, ground (trenches), including places exposed to stray currents.

Screen type

individual and general

Size

outer diameter individual for each version

Nominal core cross-section

0,20-6,0 mm²

Number of pairs

1 to 44 pcs

Number of threes

1 to 24 pcs

Number of fours

1 to 14 pcs

Armor type

band

Minimum operating temperature of the cable

at least -15 °C

Ambient temperature during cable operation

-50 to +70 °C

Mark

QUEEN

Number of cores

1...61 pcs

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
