Universal Server on Elbrus Platform "NIKA.466533.278 - Yakhont-UVN E48SFF Available for Import

Universal Server on Elbrus Platform for IT Infrastructure - NIKA.466533.278

Digital Computing Systems
Manufacturer: NT CJSC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

Designed to ensure maximum performance server based on domestic processor "Elbrus-8C" - a typical server solution for building IT infrastructure for any purpose. It is designed to perform tasks that require the organisation of multi-level storage and access to data; "Big Data" systems; cluster data processing systems. The product can be used as an application server, database servers (PostgreSQL, MySQL, etc.).

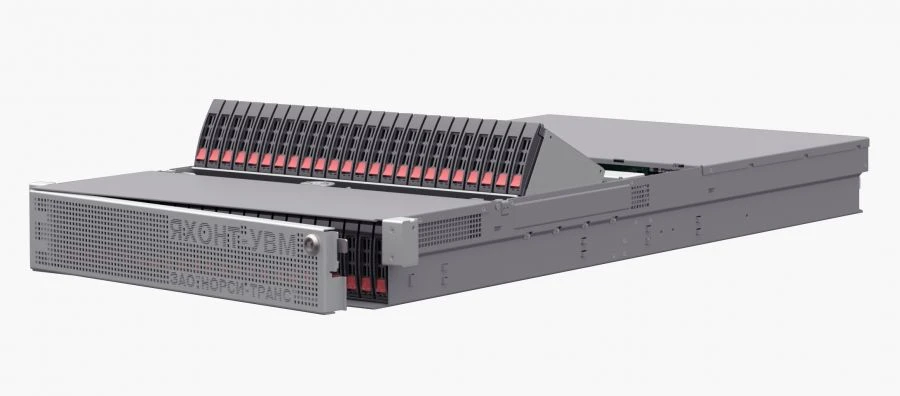

The enclosure design provides the possibility of installing up to 48 discs (24xSAS 6/12G discs of 2'5 (SFF) form factor and 24xSSD discs). 24 discs are installed in the front cassette of the server, 24 discs in the internal swivel basket. Each disc has a performance and fault indicator.

Easy to maintain and operate: installation in typical 19' cabinets; quick-release component fasteners, including for the motherboard, disc backplane, SAS-expander; Complies with the safety requirements of TR TS 004/2011, TR TS 020/2011. Has h...

Specifications

Number of processor cores
8 pcs
RAM size
32
Processors
Elbrus-8C
Power subsystem
The server is shipped with a 1+1 1100W power supply.
Data storage subsystem
Compatible with SAS SSDs up to 4TB capacity (up to 24x4TB SSD drives)
Maximum total supported RAM capacity
64
Maximum number of processors
2 pcs
Server type
rack
Number of installed processors
1...2 pcs
Number of cores of each installed processor
8 pcs
Number of slots for RAM modules
4 pcs
Capacity of each installed RAM module
8
Total amount of installed RAM
32
Supports RAM error detection and correction function
Armoured glass
Maximum number of drives per enclosure
48 pcs
Number of SFF (2.5) drive slots on the front panel
48 pcs
Availability of cable laying device
absent
Availability of rails for installation in the telecommunication cabinet
Included
Housing type
rack
Protective safety panel
In stock
Dedicated port for remote server management
Armoured glass
Remote server management system
Armoured glass
Availability of an integrated video adapter
Armoured glass
Availability of FSB-certified trusted boot tools
no
Availability of FSTEC-certified trusted boot tools
no
Number of occupied units in the rack
2
Supported drive interface
SATA/SAS
RAID types supported by the disk controller
0, 1, 5, 6, 10, 50, 60
Connection interface
RJ45
Number of USB 2.0 ports
3
USB port layout type
On the rear panel
Location type RS-232
On the rear panel
Optical drive
absent
Number of power supplies installed
2 pcs
Number of hot-swappable power supplies installed
2 pcs
Redundancy level of installed power supplies
N+1
Full power of one power supply unit
1100
Network port type
RJ45
Number of Ethernet network ports
3 pcs
Type of product according to PP RF 616
Computational electronic digital machines, supplied as systems for automatic data processing
Power subsystem
N+1
Form factor
rackmountable, 2U
Base frequency of the processor
1.3
Internal power supply
1100 W

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
