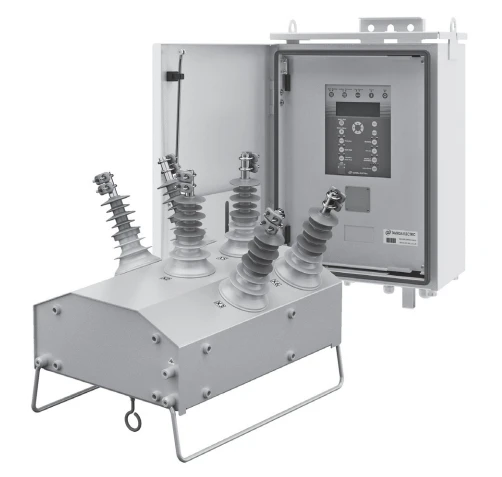

Vacuum Circuit Breaker (Recloser) Rec15(25)_Al for Reliable Power Management

High Voltage AC Switches

Manufacturer: Tavrida Electric LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Vacuum switch (recloser) Rec15(25)Al for rated currents up to 800 A and tripping currents up to 16 kA as part of c switching module OSM15(25)AL_1 three-pole version with electromagnetic actuator and control cabinet RC is designed for current switching in networks of three-phase alternating voltage with frequency 50 Hz rated voltage not more than 10(20) kV with isolated, compensated and earthed neutral in normal and emergency modes.
The Recloser is not intended for switching the current of capacitor banks and shunt reactor.
Recloser can be used for automatic sectionalising point in a network with single-sided supply; automatic sectionalising point in a network with several supply sources, including a network redundancy point; a cell on a branch line; a branch feeder cell in a substation and distribution centre; a local redundancy point.

Specifications

Control cabinet weight

SBVVBG kg

Warranty period of operation

7 year

Overall and connection dimensions (WxHxH) of the control cabinet

500x800x300 mm

Weight of the switching module

72 kg

Overall connection dimensions (WxHxH) of the switching module

695x740x760 mm; 770x844x760 mm

Enclosure protection degree according to GOST 14254 of the control cabinet

IP54

Enclosure protection degree according to GOST 14254 of the switching module

IP65

Permissible supply voltage range (DC/AC)

85...265 V

Degree of contamination according to GOST 9920

Climatic execution and placement category according to GOST 15150

UHL1

Mechanical resistance life, cycles "HE"

30000

Electrodynamic resistance current (highest peak)

40000 A

Thermal resistance current flow time

Thermal resistance current (RMS value of current during its flow time)

16000 A

Rated tripping current

16000 A

Rated current

800 A

Insulation level according to GOST 1516.3

Highest operating voltage

24 kV

Nominal voltage

20 kV

Type of arc suppression medium

Vacuum

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
