VCH-606 Impulse Signal Amplifier for Reliable Signal Reproduction

Electric Inspection Devices

Manufacturer: VREMIA-CH OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

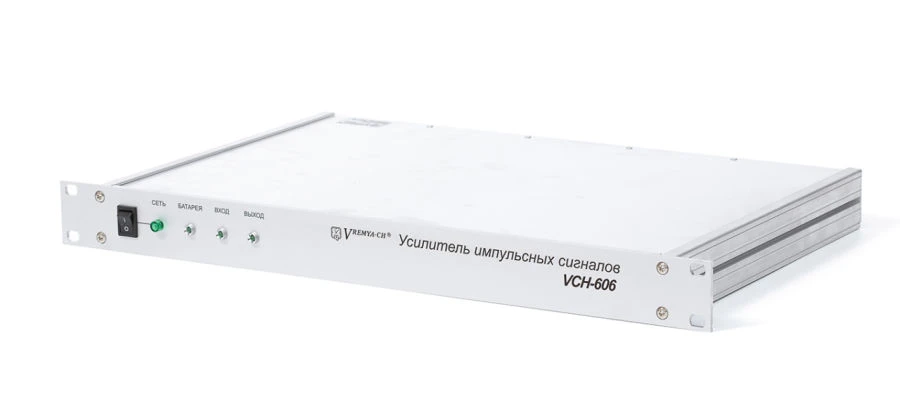

The VCH-606 pulse signal amplifier is designed for reproduction of single pulse signals or pulse sequences to 16 independent outputs. Structurally, the amplifier is designed as a monoblock, in a metal case rack version.Functionally, the amplifier consists of a pulse selector, digital-to-analogue converter, pulse distributor, delay lines, signal detectors, output buffer amplifiers and power supply.The principle of operation of amplifiers is based on the formation of the input pulse signal normalised pulse signal, having for the internal circuits of the amplifier levels TTL, and distribution of this signal to 16 output buffer amplifiers, for the front of the amplifier.

Specifications

Working conditions of operation: relative humidity at air temperature +25 C

80 %

Operating conditions: atmospheric pressure

84...106

Operating conditions: ambient air temperature

5...40 °C

DC mains power consumption

20 W

Power consumption from AC mains

20 V

DC supply voltage

22 V

AC mains supply voltage

220 V

Weight of amplifier in package

6 kg

Amplifier weight

4 kg

Overall dimensions: depth

310 mm

Overall dimensions: height

44 mm

Overall dimensions: width

483 mm

Relative difference of delays of working edges of output signals

150

Delay of signal propagation from input to output

Time to establish operating mode

Pulse output parameters: edge duration

Pulse output parameters: Pulse amplitude

2.5...5 V

Pulse input parameters: Pulse duration

SBVVBG

Pulse input signal parameters: pulse amplitude

10 V

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
