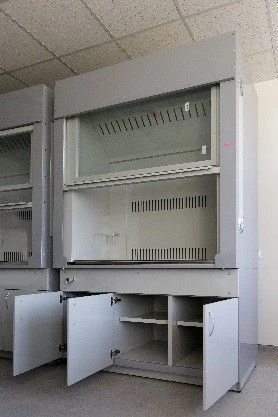

Ventilation Cabinet TV-SHLV-01.01 for Efficient Air Management

Assembled metal construction. It consists of an upper module with a working chamber and a base with drawers. The cabinet frame, working and side panels, surfaces and walls of bollards, portals are made without visible welds.

The rear and side walls are double-layered with a technological gap. Level levelling is carried out for each leg. Ventilation system made of PVC boxes, 120x60 mm and one upper spigot 200 mm.

Lifting mechanism with locking at a height from 50 mm to 530 mm from the working surface. The weight is balanced by a load. There are two compartments in the base, one for storage of reagents, the second one - technological, for maintenance of sanitary communications.

The compartment for storage of reagents is connected to the ventilation system. Bollards are made of 1 mm steel sheets, painted with epoxy-polyester powder paint. Built-in bollards with connecting flange for connection to exhaust ventilation, independent of the air movement in the air chamber of the cabinet.

Bollards with hinged doors.
