Available for Import

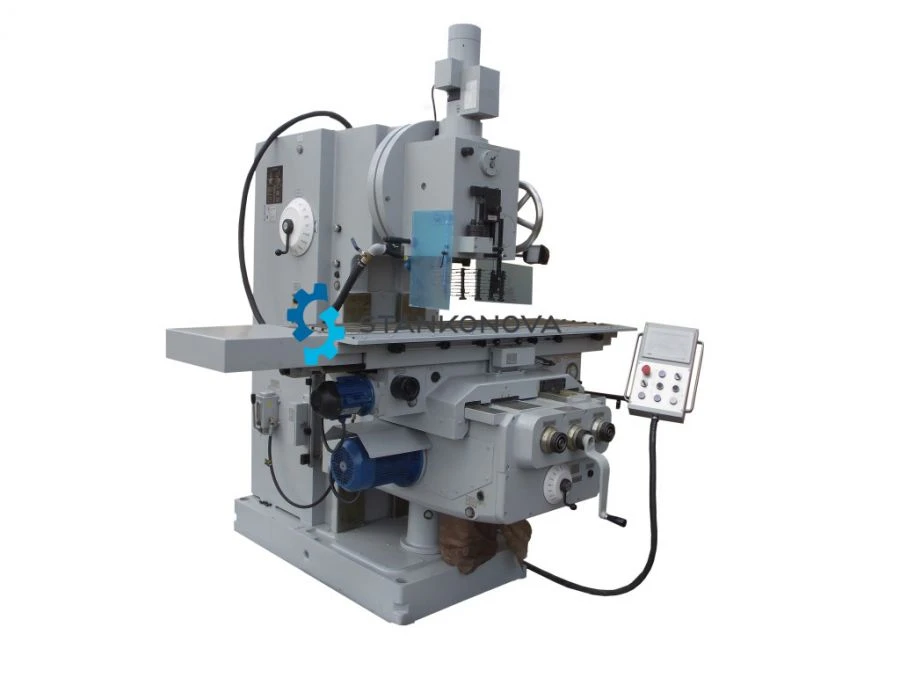

Vertical Milling Machine FSV400 for Precision Production and Versatile Applications
Manufacturer:
STANKONOVA LLC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
The FSV400 cantilever milling machine can be used for both batch and piece production. Due to its powerful design and wide speed, it can machine parts made of steel, cast iron and light metals with HSS and carbide tools.
FS series milling machines have the following qualitative differences from their analogues:
- high reliability due to the installation of a modern controller;
- The machine is controlled from the operator's touch panel, which increases the user-friendliness of the machine;
- there is a possibility of installation of linear gauges, which in interaction with the touch panel OVEN SP307-B provides the functions of the DIC with direct output of information to the touch panel operator..
FS series milling machines have the following qualitative differences from their analogues:
- high reliability due to the installation of a modern controller;
- The machine is controlled from the operator's touch panel, which increases the user-friendliness of the machine;
- there is a possibility of installation of linear gauges, which in interaction with the touch panel OVEN SP307-B provides the functions of the DIC with direct output of information to the touch panel operator..
Specifications
Design
Cantilever milling vertical
Accuracy class
?
Power
-14.43 kW
Machine weight
4 t
Maximum spindle speed
1400
Minimum spindle speed
28
Machine length
2330 mm
Machine width
2145 mm
Machine height
2410 mm
Product machining width
400 mm
Number of speeds
18 pcs
Automation level
Semi-automatic operation
Type of product according to PP RF 616
Vertical milling machines
Transverse travel of the milling head
345 mm
Longitudinal travel of the milling head
1120 mm
Milling speed
800
Length
1600 mm
Width
400 mm
Length of machined surface
1120 mm
Type
Cantilever milling vertical
Working width
345 mm
Weight
1500 kg
Height of machined surface
400 mm
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
