Vibration Displacement Sensor 3A202TH-XX

Available for Import

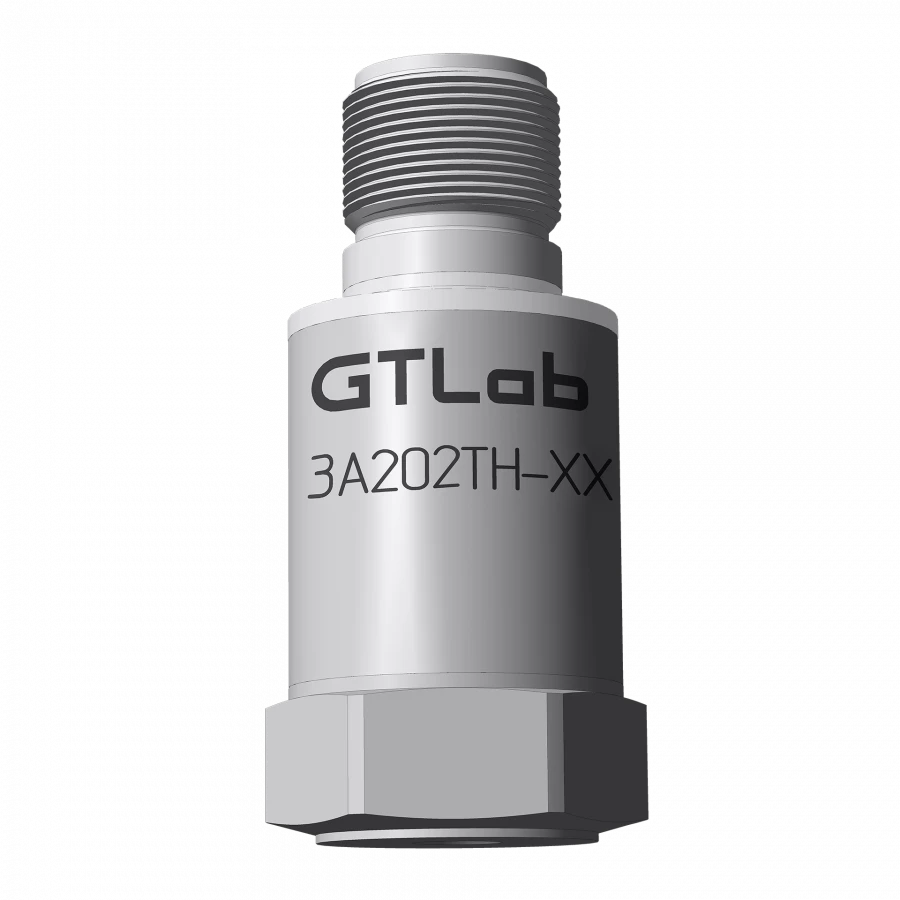

Vibration Displacement Sensor for Monitoring Industrial Equipment - 3A202TH-XX

Vibration Measurement Equipment

Manufacturer:GTLAB LLC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Displacement vibration transducers with standard current output 4 ... 20 mA. They are intended for measurement of vibration displacement amplitude of industrial equipment in conditions of strong industrial noise. Increased noise immunity (including protection against pyroeffect) is achieved by design features of the shear sensing element, electronic board, internal screen and its electrical isolation from the object of research.

Specifications

Vibration displacement to current signal conversion factor 4 ... 20 mA, (± 10 %)

0.2 mA/?m | 0.1 mA/?m | 0.05 mA/?m | 0.025 mA/?m

Operating frequency range of measured vibration displacement

80 µm | 160 µm | 320 µm | 640 µm

Operating frequency range of measured vibration displacement

5 ... 500 Hz

Unevenness of frequency response relative to the value at the base frequency 159.15 Hz, within the limits of

3 to minus 12.5%

Relative transverse conversion ratio

< 5 %

Operating temperature range

-40 ... +85 °?

Coefficient of influence of ambient air temperature, within the limits of

± 0,2 %/°?

Sensor supply voltage

+ (10 ... 24) ?

Time to establish operating mode

< 4 ?

Explosion protection

1Ex d IIC T6...T4 Gb, 0Ex ia IIC T6...T4 Ga

Degree of protection against external influences

IP67

Weight (without cable)

60 ?

Type of product according to PP RF 616

Instruments and other instruments for measurement, control and testing

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
