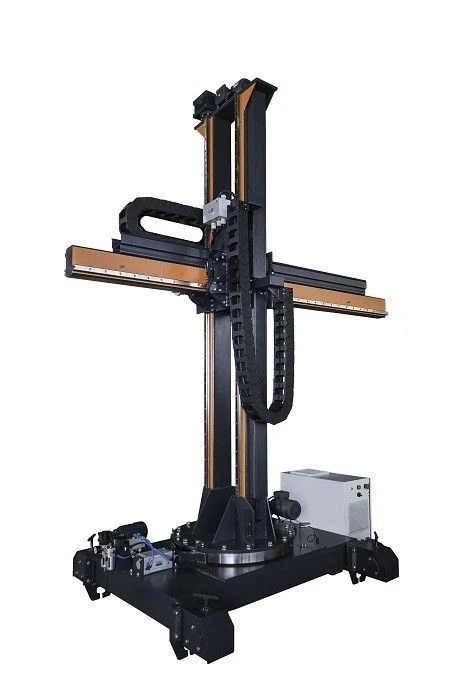

Welding Column SVK 1 (2x2, Load Capacity 100 kg) with Control Cabinet and Remote Control

Available for Import

Welding Column SVK 1 (2x2, Load Capacity 100 kg) for Arc Welding Applications

Special Purpose Equipment

Manufacturer: ESVA OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Welding column SVK 1 (2x2 g/p 100 kg) with cabinet and control panel, not driven.

Description

Two-post welding column for mounting and moving welding heads, stripping and cutting tools. Welding columns are designed for fixing and moving heads for arc welding of straight and circular seams of vessels or pipes under submerged arc or shielded gas, as well as for welding of longitudinal seams. They can be used in conjunction with OVS or OVR roller supports, as well as with MC series manipulators and other types of positioners. Safety in use thanks to the double column beam, which eliminates counterweight, cable breakage, provides reliability and durability. Welding head, Welding source, Rail travelling system, including motorised and non-standard rail track, Rotation system around its own axis, including motorised, Tracking system - visual (video camera), laser and feedback (probe), Source pad, Flux collection system.

Specifications

Voltage

3...380 V

Weight, not more

1300 kg

Service life, at least

10 year

Power consumption

2.5 kW

Payload

100 kg

Horizontal beam travelling speed

(110-1100) mm

Speed of rotation around the axis

0.7

Boom slewing speed

(0,07-072)

Speed of column movement

1.6 m

Overall dimensions (DxWxH)

(2760x1880x3240) mm

Trolley wheelbase

1500 mm

Overall dimensions of the cart (DxWxH)

(2200x2250x500) mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
