Wide-Working Soil Cultivator CPSh-9U for Effective Soil Treatment

Cultivator Machines

Manufacturer: DIBOREXPORT LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

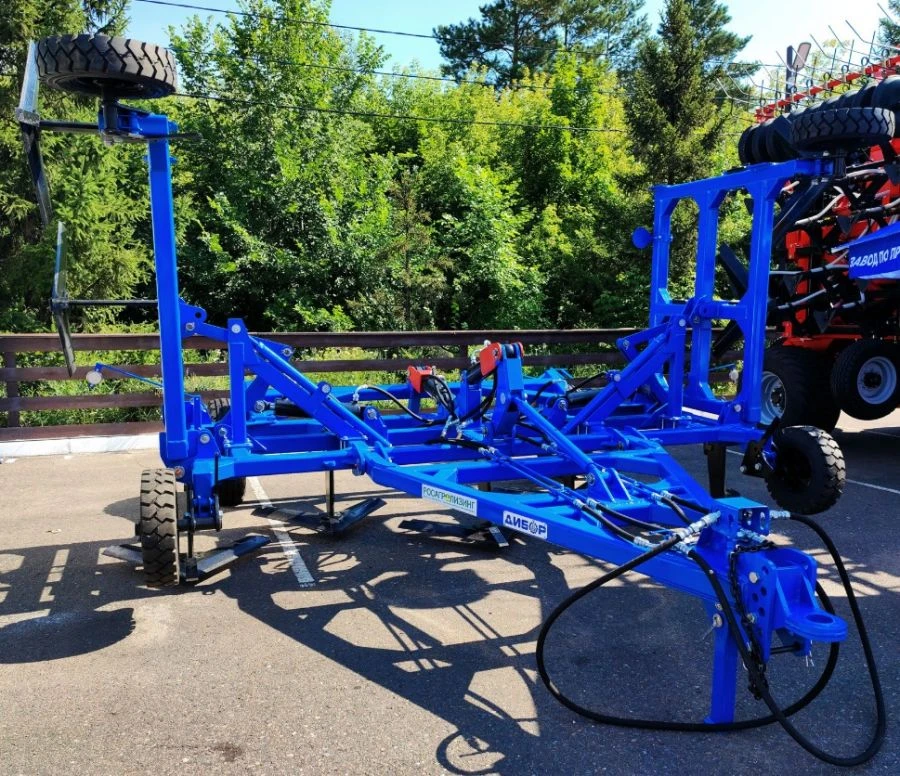

The KPSH-9U wide-cutting cultivator is designed for fall and autumn tillage, as well as pre-sowing tillage of soils, light in mechanical composition, with maximum preservation of stubble and other crop residues on the field surface after spike and tilled predecessors. Preservation of stubble protects the soil from wind erosion, which is important for steppe areas and areas with insufficient moisture. KPSH-9U is a trailed implement with symmetrical arrangement of working bodies, raising and lowering of which from transport position to working position and back is performed by the hydraulic system of the tractor from its cabin. The cultivator is coupled with agricultural tractors of 5-6th traction class with a power of 300-350 hp.

Specifications

Type of product according to PP RF 616

Cultivators

Width

8200 mm

Height

1400 mm

Length

5650 mm

Working width

8.2 m

Material of working elements

Steel

Material of frame structures

Steel

Number of working orans

9 pcs

Tillage depth

7...20 cm

Weed cutting, at least

100 %

Stubble retention, not less

80 %

Ridging of soil surface, depth, not more than

8 cm

MTBF of a single product, not less than

Service life

8 year

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
