Wideband 3G/4G MIMO Antenna with 15 dB Gain KAA15-700/2700 BOX

Available for Import

Wideband 3G/4G MIMO Antenna with 15 dB Gain for Enhanced Connectivity

Antenna Equipment & Parts

Manufacturer: KROKS PLUS LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

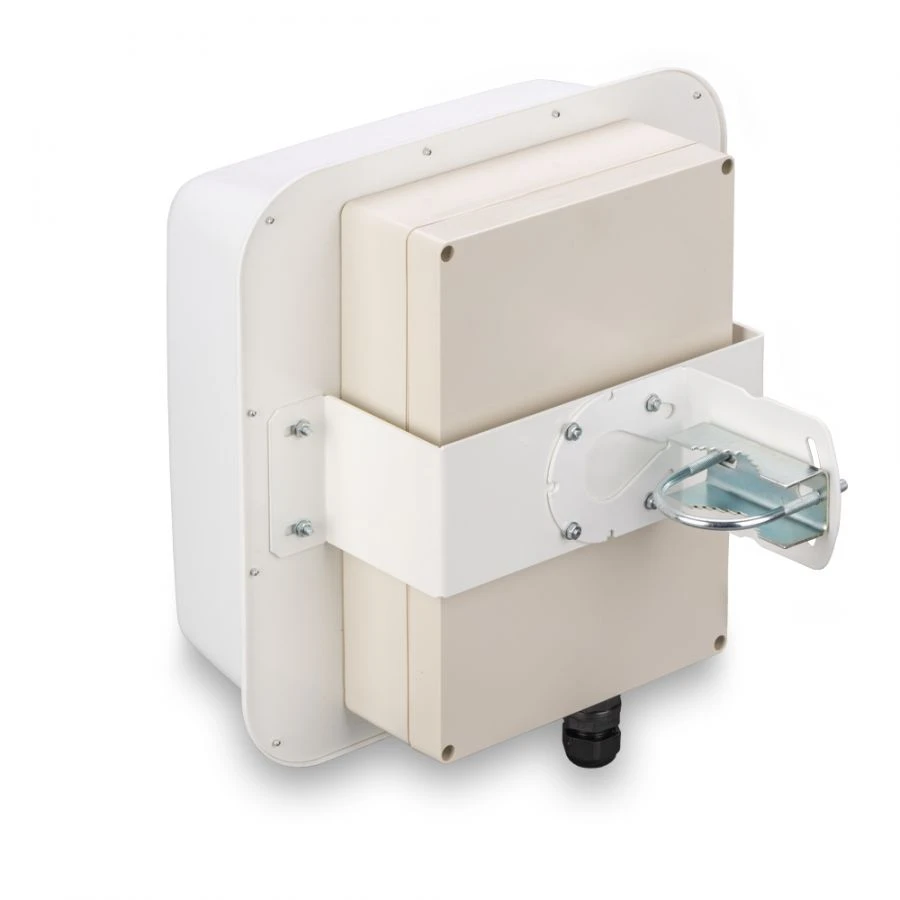

The antenna's wide operating frequency range allows 3G/4G modems to work effectively at the borders of 4G service areas, and the high gain of 15 dB allows receiving data at a distance of up to 10km. The modem will automatically switch to 3G standard in case of 4G signal absence, and the antenna will provide it with quality signal in both bands. The antenna is combined with a sealed box, which houses the router and 3G/4G modem.

The hermetic box allows to place the whole line of our routers for hermetic box or routers of other manufacturers. There are two SMA (female) high frequency connectors on the back of the antenna. Two SMA-male (angled) pigtails with U.fl, SMA, MHF4 connectors of the buyer's choice are included.

Specifications

Polarization

linear

Connector

SMA-female

Weight

2.9 kg

Minimum value of the operating radio frequency range

700

Maximum value of the operating radio frequency range

2700

Gain factor

11...15

Standing wave coefficient (VSWR)

1.8

Input impedance

SBVVBG ohm

Maximum permissible power

10 W

Maximum wind load

108

MIMO support

Armoured glass

Port-to-port isolation at least

Built-in memory card slot, support microSD/SDHC/SDXC card (up to 256GB); manual recording/alarm recording

Received signals

UMTS-2100

Type of execution

Panelled, With hermetic box

Length

315 mm

Width

305 mm

Height

175 mm

Mark

Kroks

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
