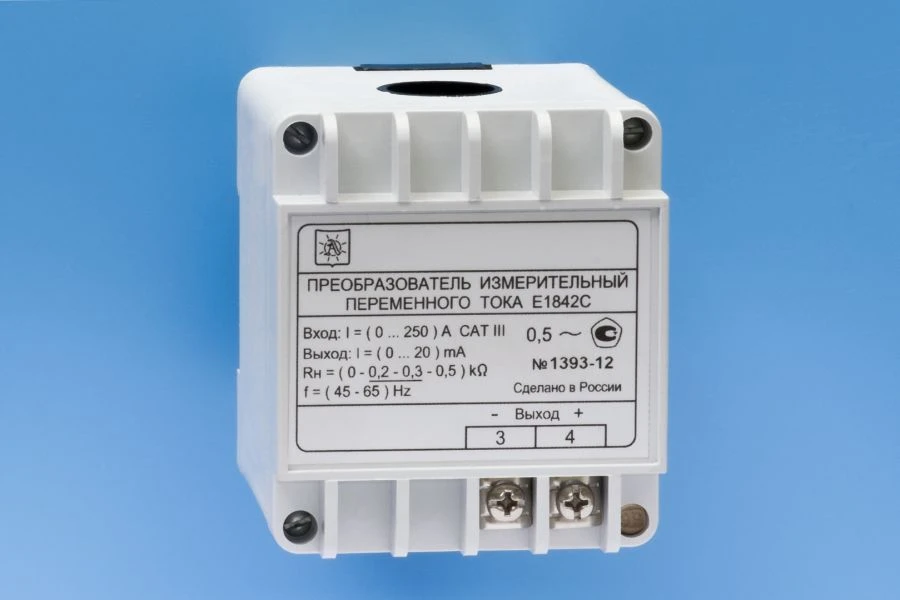

AC Current Measurement Converter E1842C for Electrical System Monitoring

The converter is designed for linear conversion of alternating current into a unified output DC signal. unified DC output signal and can be used to control currents of electrical systems and installations with rated voltage up to 660 V, in technical diagnostics equipment, for complex automation of power engineering facilities and various industries. The converter is a single-channel through-type product. Power supply voltage is not required.

The converter provides linear conversion of AC to DC output signal.

Input current variation ranges: 0 to 25 A; 0 to 50 A; 0 to 100 A. Output current variation range from 0 to 20 mA. Load resistance from 0 to 500 ohms; normal range of load resistance values from 200 to 300 ohms.
