Adjustable Ring Frame with Crossbar for Gymnastics Training

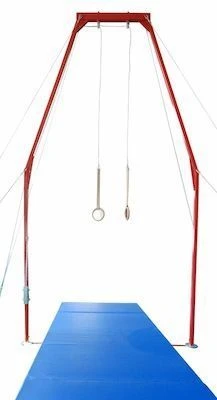

The frame with rings is two vertical height-adjustable posts with a cross beam. Two adjusting assemblies are mounted on the cross beam, to which the suspension rings are suspended on cables. There are thrust bearings and compression springs in the units, which provide dynamic suspension of the rings.The frame is fixed on the floor by means of cable stretchers and a stretcher with a quick tensioning mechanism.

The height of the rings suspension can be precisely adjusted. All structural elements of the product are powder coated.Main dimensions of the frame with rings :1. Frame height - 5950 - 6250 mm2.

Adjustment step - 50 mm3. Distance between the posts - 2750 mm4. Ring suspension height - 250 - 285 cm5.

Diameter of rings - 180 mm7. Weight of the product - 90kg.
