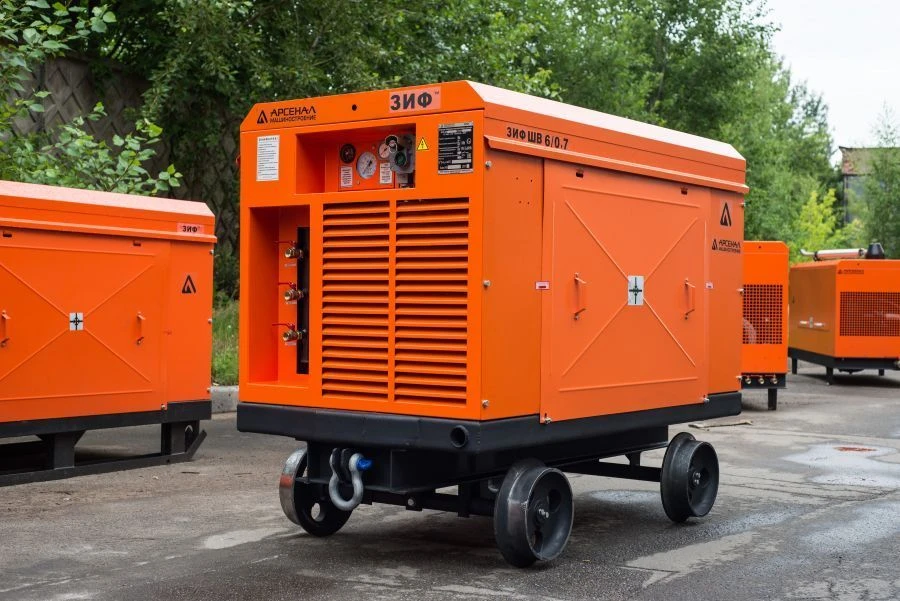

Air Compressor Station ZIF-SHV 7.5/0.7 for Compressed Air Production in Mining

Compressor type: screw. Purpose: for generation of compressed air for supply of local pneumatic networks of industrial enterprises of mining and mining industry (coal mines, potash mines, mines). Drive type: explosion-proof electric motor.

Nominal volumetric capacity, nm3/min, not less: 7.5 Final working pressure (overpressure), MPa: 0.7 Compressible gas: atmospheric air Operating temperature range, 0?: from minus 5 to +35 Oil content in compressed air at rated mode, g/m3, not more: 0.0035 Rated power, kW: 45 Operating mode: automatic Overall dimensions (DxWxH), mm - 185010501306 Weight, kg, not more: 1000 Within the framework ofTU 3643-012-76260790-2018 "Air-compressor mine stations types: ZIF-SHV (ARM18), ZIF-SHV T (ARM18 T), ZIF-SHV (ARM19), ZIF-SHV T (ARM19 T), ZIF-SVE (ARM19), ZIF-SVE T (ARM19 T). Technical conditions." a line of single-type mine air-compressor stations of the following types is produced: ZIF-SV (ARM18), ZIF-SV.....
