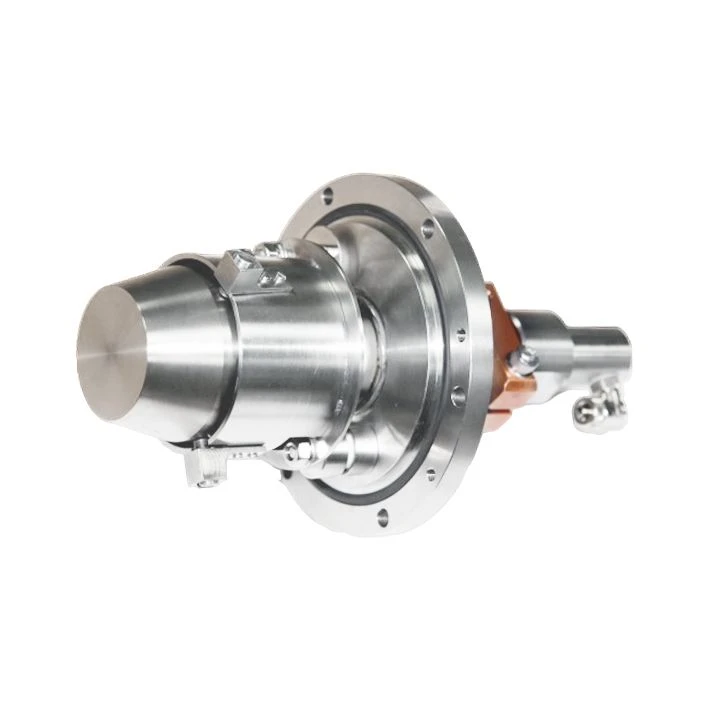

Arc Evaporator D40 for Vacuum Metal Film Deposition

Available for Import

Arc Evaporator D40 for Efficient Metal Film Deposition in Vacuum

Electrical Interface Devices

Manufacturer:LVT+ LLC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

D40 arc evaporator is designed for spraying metal films on substrates by electric arc evaporation in vacuum. *Note: cathode diameter is 40 mm. The operating manual is available on request: LCMK.255.00.00.00.00.000-01 RE Vaporiser.

Specifications

Assignment

Designed for sputtering metal films on substrates by electric arc evaporation in vacuum.

Dustproof

Yes - The case is made of metal, has no open live parts.

Type of construction

Built-in

Warranty period

1 year

Climatic designs

GOST 15150-69; GOST 15543-70 at normal values of climatic factors of external environment - UHL for product placement category 4.2.

Power supply voltage

380(±10%) V

Maximum power

5 kW

Maximum arc discharge current

120 A

Maximum coil current

3 A

Rated coil resistance

9,5(±0,5) ohm

Chamber pressure, not less than

0,1

Coolant (recommended)*

Distilled water, 20% solution of ethyl alcohol in distilled water according to GOST 6709-72

Connection flange

ISO160

Overall dimensions, (length x cathode diameter x height)

363x40x230 mm

Weight, not more

28 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
