Atmospheric Radio Sounding Complex AK2-02M for Accurate Atmospheric Measurements

Weather and Measurement Instruments

Manufacturer: AEROINSTRUMENT LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

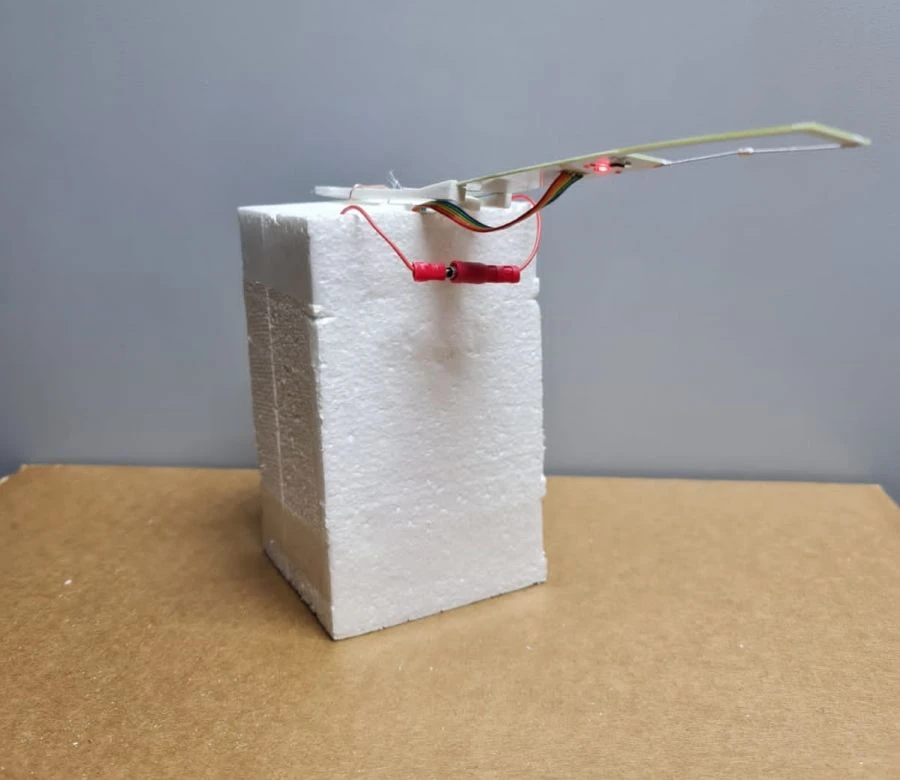

Airborne integrated sounding radiosonde AK2 Airborne integrated sounding radiosonde AK2-02mF

Description

SI is designed to measure various atmospheric parameters, convert measurement information into a telemetric radio signal and transmit it for further processing to a ground tracking station

Specifications

Ambient air temperature measurement range

-90...50 °C

Limits of permissible absolute error of temperature measurements

±0.6? or ±1.0?

Measuring range of ambient relative humidity

0...100 %

Tolerance limits of absolute error of relative humidity measurements

±5% OF VOV

DC supply voltage

4.5...6.7 V

Consumption current

max. 350 mA

Overall dimensions (L×W×H)

not more than 140×95×95 mm

Weight

max. 0.27 kg

Work resource

at least 50 h

Probability of failure-free operation in 2 hours

Not less than 0.97

Duration of continuous operation from the moment the battery is connected

at least 4 h

Shelf life without battery

at least 4 years

Time to prepare the radiosonde for launch

not more than 15 min.

Carrier frequency of radiosonde radiation

1680±8 MHz or 1680±10 MHz or 1782±8 MHz

Super pulse repetition rate

600±25 kHz or 800±25 kHz

Deviation of the superimpulse repetition rate

12-18 kHz or 15.4±0.4 kHz

Radiation energy flux density of the transceiver at a distance of 2.00±0.05 m in the direction at an angle of 55º from the axis

at least 1.5?10¯³ W/m²

Sensitivity of the transceiver to request signals

max -60 dB

Measuring range of output pulse duration in the reference channel

200 to 350 ?s

Measurement range for measuring the duration of output pulses in weather information channels

from 435 to 756 mks

Range of variation of the pulse repetition period produced by the measuring transducer in the reference channel 2251708:Range of

1449 to 1785 ?s

Range of pulse repetition period variation produced by the measuring transducer in the temperature channel

1562 to 58821 ?s

Variation range of the pulse repetition period produced by the measuring transducer in the moisture channel

from 1562 to 2564 ?s

Operating conditions (ambient air temperature)

-90...50 °C

Operating conditions (atmospheric pressure)

2 to 1100 hPa

Operating conditions (relative humidity)

0...100 %

Working conditions of operation (exposure to solar radiation and other natural radiations)

Armoured glass

Working conditions of operation (presence of atmospheric precipitation)

Armoured glass

Operating conditions (air blowing when the radiosonde rises in the atmosphere)

Armoured glass

Note

the temperature sensor is coated with special anti-radiation coating - white enamel VL 548 (TU 6-10-1658-78) or an analog with optical properties

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
