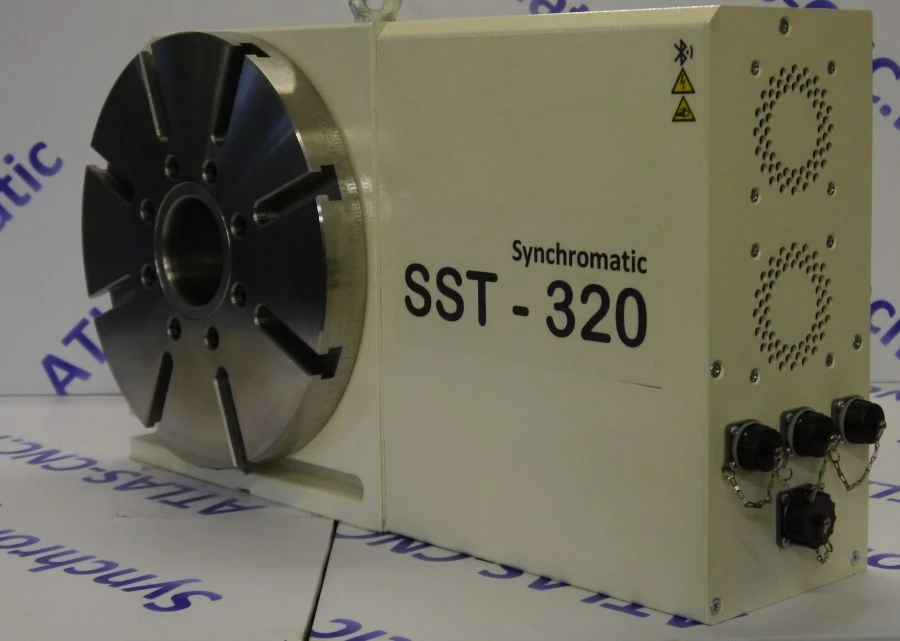

Automatic Rotary Table with Wireless Control - Atlas SST-320

Automatic Rotary Table Atlas SST-320 for Versatile CNC Applications

Manufacturer:KTM LLC
Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

Automatic rotary and dividing table with wireless control from a tablet, pre-installed software, servo drives, pneumatic brake. Coordinates with all universal machines, and with CNC machines on a simplified programme. Designed for controlled rotation of the workpiece.

Significantly simplifies and accelerates machining and circular laser and plasma cutting processes. Saves space around the machine, does not require specialised personnel training. Interface in Russian.

Fully Russian development, technical support and warranty. Certified. Patented.

Specifications

Type of product according to PP RF 616
Mandrels for fixing tools
Product weight
180 kg
Repeatability, sec
4
Minimum number of teeth of the gear to be cut
5 pcs
Maximum number of teeth of the gear to be cut
800 pcs
Positioning accuracy, sec
14
Rotary axis position
Vertical / Horizontal
Vertical (cantilever) load, with tailstock, kg
300 kg
Vertical (cantilever) load, without tailstock kg
110 kg
Faceplate clamping method / pressure, MPa
0.4...0.6 MPa
Maximum dynamic load W, kg
270 kg
Maximum static load on the faceplate, kg
800 kg
Minimum rotation speed, rpm
0.5
Maximum rotation speed, rpm
22
Minimum angle of rotation, deg.
0.001
Gear ratio
1:100
Width of guide nut, mm
18 mm
Width of T-slots, mm
16 mm
Center through hole, mm
78 mm
Center height at vertical installation, mm
158 mm
Diameter of the maximum adjustable chuck, mm
250 mm
Dimensions L x W x H mm
615-350-158

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
