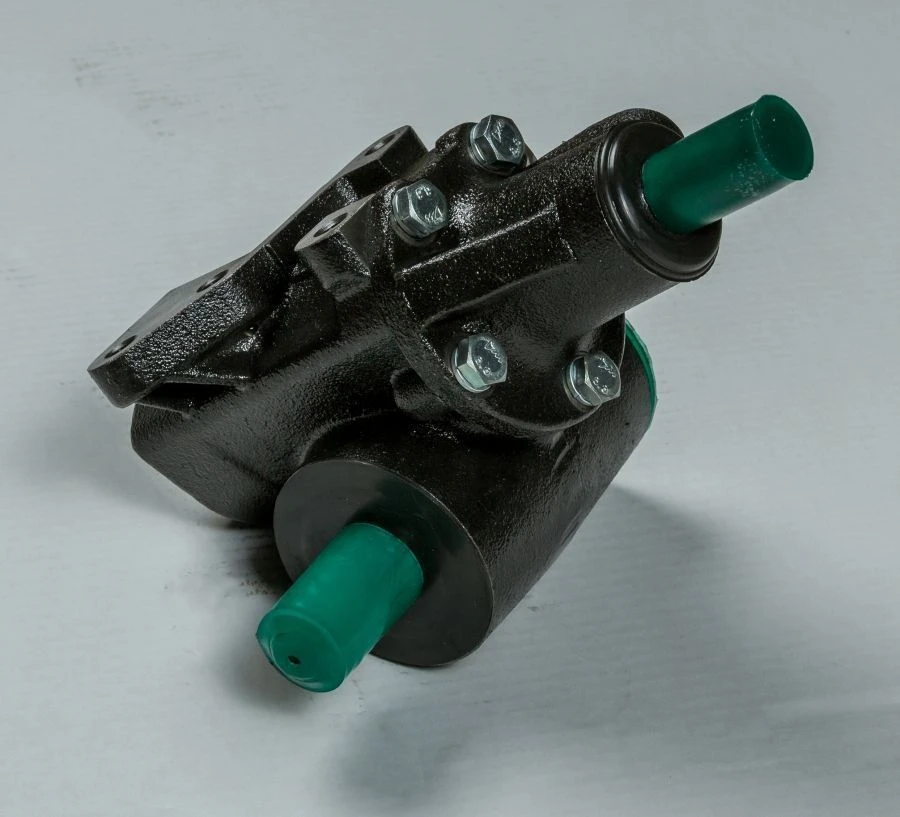

Automotive Steering Control Mechanism (MRC) for Precision Steering Control

- type of MPU - screw, ball nut, rack, sector;
- steering bipod shaft diameter - from 27 to 50 mm;
- centre distance in the crankcase - from 50 to 98 mm;
- screw diameter - from 20 to 80 mm (20, 25, 32, 40, 45, 50, 63, 70, 80);
- screw and nut thread pitch - from 4 to 20 mm (4, 5, 6, 8, 10, 12, 15, 16, 20);
- thread profile - arched (gothic arch);
- nut type - single nut with toothed rail;
- method of creating preload
- by selective selection of ball diameters for the thread profile "gothic arch";
- ball diameter - Ø7, 144; Ø7, 938;
- ball return mechanism - external return tube or pad;
- type of power steering - hydraulic, electric;
- location of the steering booster - built into the steering mechanism, separate from the steering mechanism;
- ambient temperature during operation from - 45°C to + 50°C (depending on the type of oil).
