Description

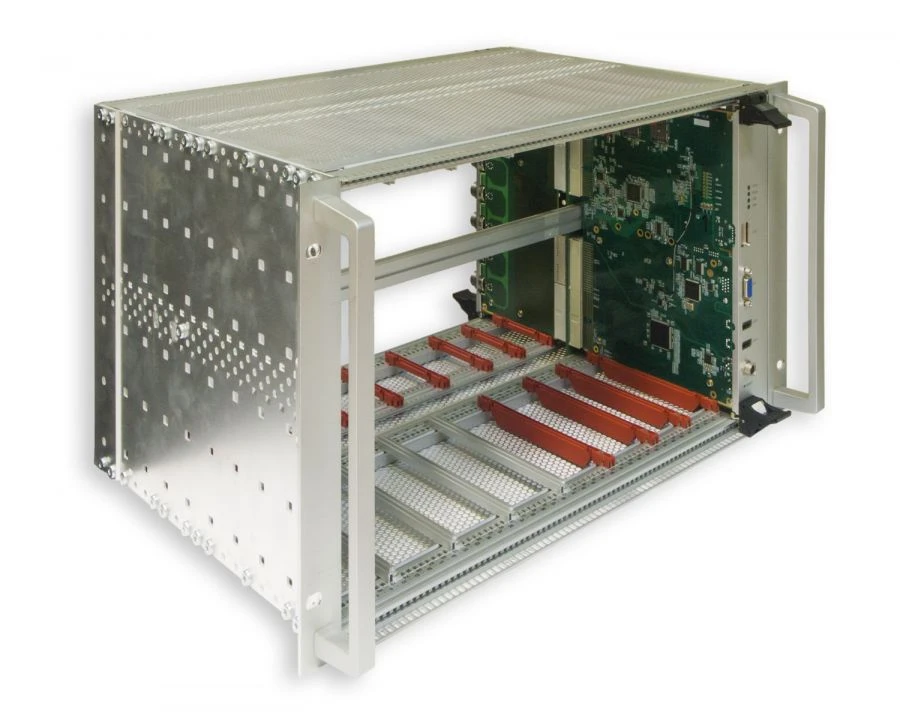

BK02 is designed for use as an on-board computer, made in the design "Euromechanics 6U" and provides:
-operation with external devices via interfaces 2 x RS485, 4 x CAN, 7 x Ethernet;
- output of graphic information to the external screen via LVDS and VGA interfaces;
- microphone connection, audio information output;
-connection of data carriers and HID-devices to USB ports.

Specifications

Processor frequency

1660

Designation

BK02

Processor

Intel Pineview-M (-D) Dual Core (D510)

RAM

2 GB.

FLASH disk

4GB NAND Flash (dual channel) connected to SATA interface

CPCI bus support

4 peripheral slots according to PICMG 2.0 R3.0 (32 bits, 33 MHz)

External interfaces

CAN2.1V - 4 channels; USB2.0 - 2 channels; Ethernet 1 Gb - 7 channels; RS232 - 2 channels (optional); RS485 - 2 channels; DIGITAL I/O - 6 input channels, 2 output channels; miniPCIe form factor for connection of MC7455 modem with possibility to install two

Capacity of CFast memory card

Up to 64GB.

DC supply operating voltage

plus 5 V

Power consumption

Not more than 25 W (without taking into account consumption of external devices connected to the unit)

Total power consumption of external devices connected to BC02

No more than 30 W

Operating conditions

Operating temperature range: from minus 50 to plus 50° C; relative humidity 98% at ambient temperature 25° C.

Size

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
