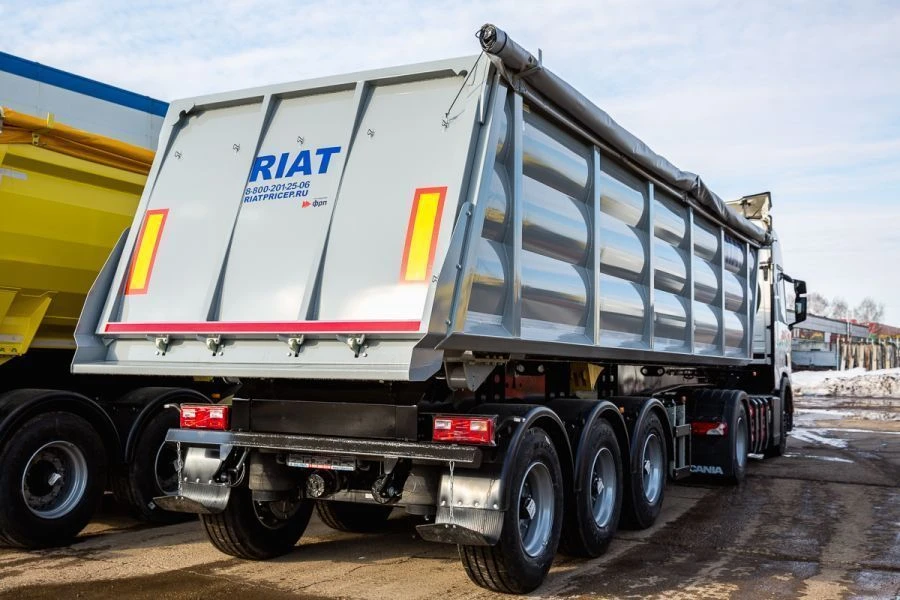

Box-Type Tipper Semi-Trailer 924900-33B for Efficient Cargo Transport

BOX-TYPE tipper semi-trailer. Equipment 924900-33B. Overall dimensions of the semi-trailer (DxWxH): 9800x2550x3340 mm.

Internal dimensions of the body (DxWxH): 8080x2390x1650 mm. Cargo volume: 33 cubic metres. Mass indicators: Curb weight of the trailer: 7850 kg.

Payload: 30850 kg. Gross weight: 38700 kg. Tandem axle load: 11700 kg.

Bogie load: 27000 kg. TMS height: 1200/1300 mm. Unloading direction: Backwards.

Platform lift angle: 45º ... 47º. Track: 2045 mm.

Due to the rectangular cross-section of the platform it is easier to clean the platform from the "stuck" load. The platform tipping axis on the frame is located with a slight offset from the axis of suspension pneumatic springs attachment to the frame. This increases the stability of the semi-trailer when unloading.

Increased service life of the semitrailer metal structure due to the use of high-strength steels.
