BRIT-90-110-550/2000 KN Transformer Feedthrough, Model 1.9.001UAvailable for Import

BRIT-90-110-550/2000 KN Transformer Feedthrough for High Voltage Applications

Electrical Insulating Components
Manufacturer:H ENERGY LLC
Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

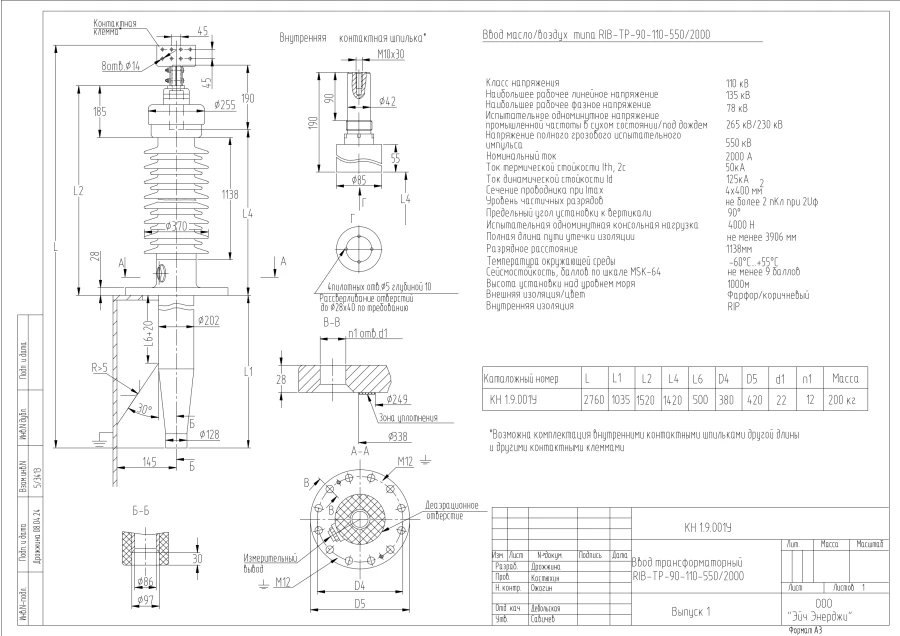

RIP type solid insulated bushings are bushings designed for high voltage current output from transformer tank and are constructively independent products. Bushings of BRIT-90-110-550/2000 type are produced for current 2000A, for 110kV network. The type of external insulation is porcelain.

Specifications

Input type
Transformer
Type of external insulation
Porcelain
Voltage class
110 kV
Rated current
2000 A
