Calibration Fluorescent Target VM2-3 for Precise Laser Calibration

Specialised Optical Devices

Manufacturer: PHOTONTECHSYSTEM LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

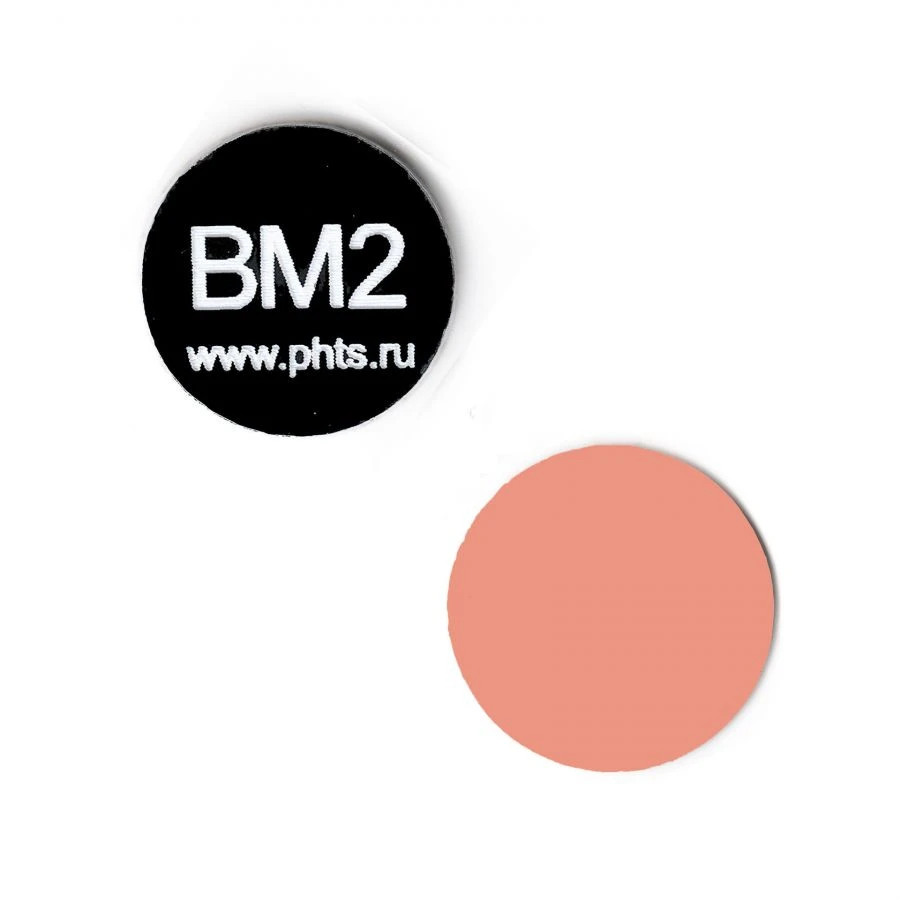

The VM2 series calibration target allows calibration of laser systems with minimal impact on the optical circuitry of the instrument. The target is made of recombination phosphor and is capable of converting laser radiation in the wavelength range up to 2.13+ µm. Due to the polymer base, these targets are more resistant to physical damage and moisture.

The possibility of customised ordering allows you to tailor the target to your specific application. Features: can be ordered to individual sizes to suit the needs of the customer; easy to use; requires recharging with visible light.

Specifications

Diameter of the detection area

20 mm

Daylight charging is required

Armoured glass

Polymer type

IK2.

Spectral range, µm

0,75-2,13+

Failure threshold, mW/cm^2

>700

Sensitivity, ?W/cm^2

<20 (@808 nm), <20 (@960 nm), <2 (@1550 nm), <500 (@1940 nm)

Glow color

red

Possibility of manufacturing according to individual dimensions

Armoured glass
