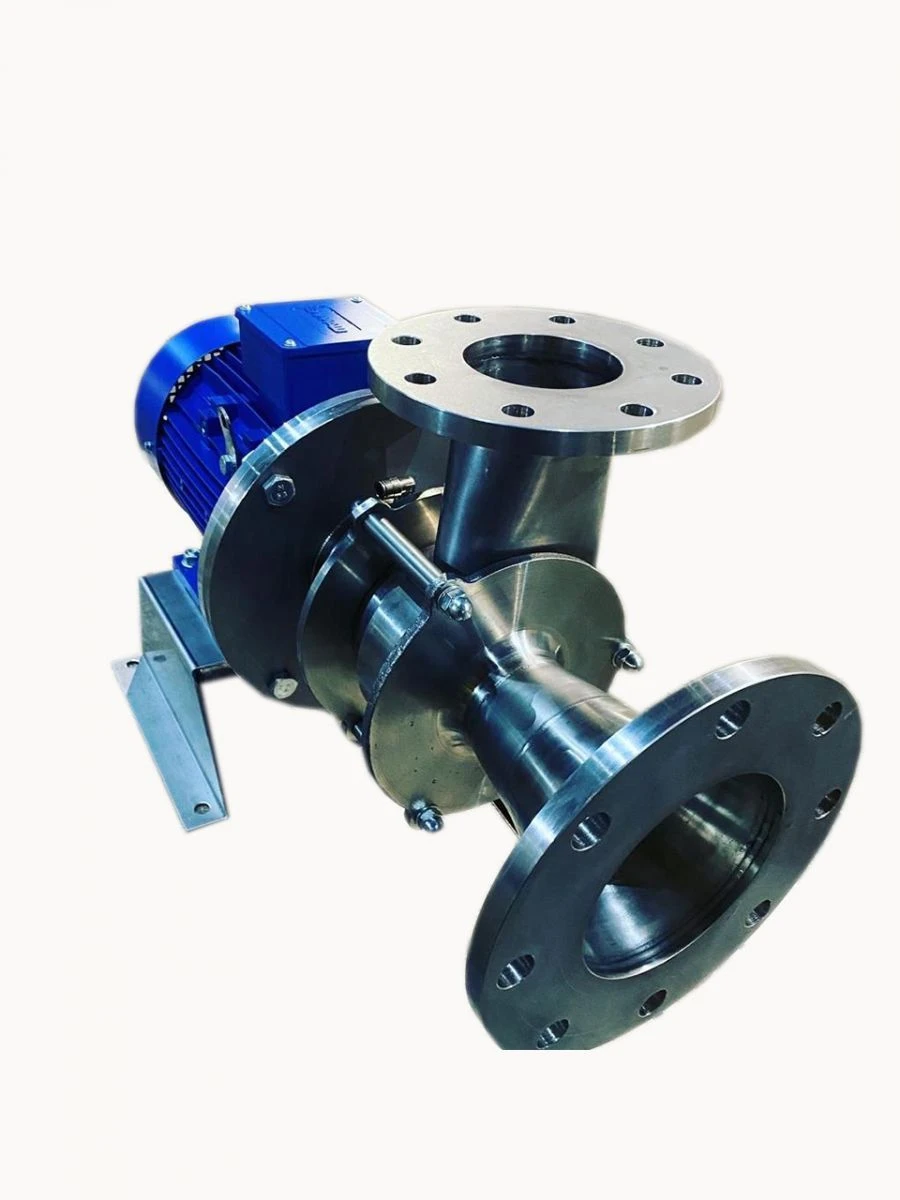

Centrifugal Monoblock Pump Sieva 40 for Vacuum Evaporation Applications

Sieva 40 technical characteristics Pump type centrifugal monobloc horizontal pump for vacuum evaporator plants Impeller of open type Impeller material stainless steel 18?25?19?2L Material of working coverStainless steel 18?25?19?2L Casing materialStainless steel 18?25?19?2L Bracket material 08?18?10 Operating temperature, not more than, °?90 Capacity, not more, m.cu.hr40 Differential pressure at the outlet in the discharge pipe, not more than, m20 Created relative rarefaction in the suction branch pipe, not less than, bar0.6 Industrial electric motor 380V Climatic executionU2 (according to GOST 15150-69) Power, kW7,5 Electric motor speed, rpm3000 Inlet pipe coupling assembly DIN11851 DN150 Outlet pipe socket assembly DIN11851 DN100 Double mechanical seal "back to back". Overall dimensions, max. mm length710 width380 height430 Weight, not more, kg72 Additional equipment built-in cooling tank.
