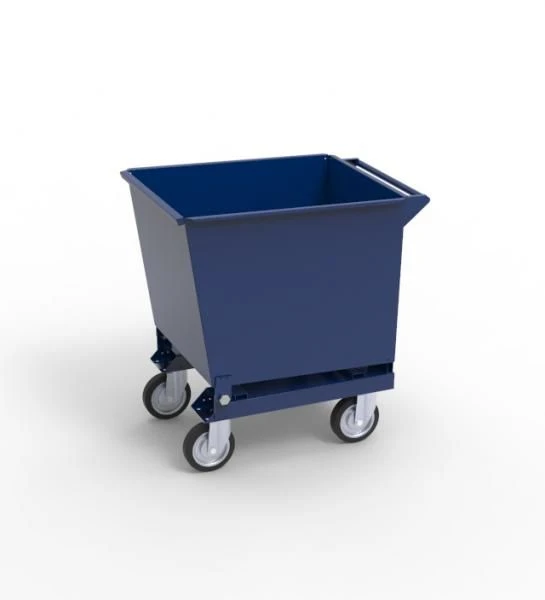

Chip Collection Trolley TS-180 for Efficient Waste Management in Industrial Settings

Dimensions (HxWxH), mm: 840 x 820 x 575 Construction: prefabricated-welded construction, the hopper is fully welded, equipped with a crane for draining coolants or oils. The platform and the hopper are connected by a hinge for chip ejection, by manually tipping the hopper. There is a stopper against accidental tipping.

Material: platform made of 2 mm x/w sheet, bucket made of 1.5 mm x/w sheet. Coating: powder paint RAL 5002. Bucket capacity: 180 litres.

The trolley is equipped with 4 industrial swivel wheels Ø 160 mm, 2 with brake. Maximum load on the trolley up to 450kg.
