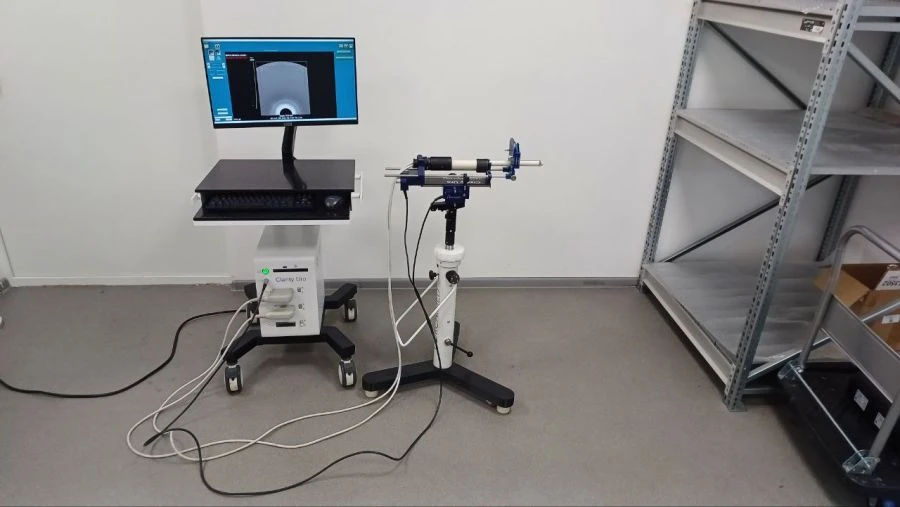

Clarity Uro Ultrasound Diagnostic Medical System for Real-Time Imaging

Ultrasound Diagnostic Devices

Manufacturer: ORKHIMED LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Designed for the formation of real-time echograms to obtain clinical information on the location, shape, structure, geometric dimensions of human organs and tissues by ultrasound location method, as well as for stereotactic navigation during the target transperineal biopsy of the prostate gland and focal therapy of its malignant neoplasms with the possibility of preliminary comparison and combination of ultrasound and tomographic medical images. The system is used for ultrasound diagnostics and stereotactic navigation with the possibility of preliminary comparison and combination of ultrasound and tomographic medical images during urological examination and/or focal therapy of malignant neoplasms of the prostate gland.

Specifications

Structural design

Stationary, without wheelbase separation

Sensor additional No. 4

Additional sensor No. 3

Additional sensor No. 2

Sensor additional No. 1

Armoured glass

Transesophageal sensor #2

Phased sector sensor No.2

Sector phased array sensor No.1

Microconvex sensor No.2

Microconvex sensor #1

Transesophageal sensor #1

Phased sector sensor No. 3

Convex sensor No. 2

Convex sensor #1

Linear sensor No. 3

Linear sensor No. 2

Linear sensor No. 1

Sensor Configuration (Only available when Sensor option #1 is selected - Yes)

Biplane intracavitary microconvex

Functions active on the sensor (Only available when Sensor option no. 1 is selected - Yes)

Fusion.

Image archiving to internal hard disc or solid state drive

Armoured glass

Image archiving to external media, via USB port

Armoured glass

Determination of parameters, variants of calculations

During research

Programme and calculation packages

Urology

Specialised imaging modes, software and calculation packages for ultrasonic navigation with sensor positioning (F

Combining ultrasound images with 2D and/or 3D images acquired in multiple modalities (including CT, MRI, PET, and ultrasound)

Technology to support combined imaging with CT or MRI data

Armoured glass

Service functions

Automatic B-image optimisation by tissue sound velocity or tissue acoustic properties

Functional keyboard

Armoured glass

Adjusting the control panel

In the horizontal plane

Power consumption from AC mains

Not more than 620VA

Supply voltage from AC mains with frequency 500,5 Hz, V

230

Echogram display modes

B-mode (2D mode)

Dynamic range of received signals, dB

From 36 to 102

Focusing

Transmission focusing with a maximum of eight zones

Operability with ultrasonic sensors

Biplane rectal ultrasound sensor (SAUN003002)

Convex radiator imaging frequency, MHz

4.5 to 9.0

Linear transmitter imaging frequency, MHz

6.0 to 11.0

Safety

GOST R MEC 60601-1

Overall dimensions, mm: - Console (with keyboard and monitor)

1300x610x800

Overall dimensions, mm: - Stapper

467x485x165

Overall dimensions, mm: - Stepper stands

630x540

Overall dimensions, mm: - Biplane rectal ultrasound sensor

370x32x21

Overall dimensions, mm: - Power cable

2020

Weight, kg: - Console

52,1

Weight, kg: - Stepper

4,06

Weight, kg: - Stepper stands

12,7

Weight, kg: - Biplane rectal ultrasound sensor

1,23

Weight, kg: - Power cable

0,4

Maximum mass of the system in transport container, kg

Monitor

Colour HD monitor has the following characteristics: - anti-reflective coating; - possibility of user adjustment of monitor parameters (brightness, contrast); - diagonal screen size not less than 21.5 inches; - resolution not less than 1920x1080 pixels; -

External signalling connections

HDMI port (input); USB ports: used to connect USB peripheral devices; Network connector: used to connect to a local area network (LAN). Patient data can be transferred to other servers via DICOM

Version of integrated software

Not less than 1.0 (release date: 01.09.2022)

Humidity

During operation: not more than 80% at 25C; During transport: 75%; During storage: up to 75%.

Temperature

At operation: 10 - 35C (biplane rectal ultrasonic sensor is manufactured in climatic version U6 and remains serviceable during operation at nominal temperature values from 32C to 42C in accordance with GOST R 50444-2020); During storage: -50 -

Atmospheric pressure

84.0 to 106.7 kPa (630 to 800 mmHg)

Stability of biplane rectal ultrasound sensor (only scanning surface/emitter area) to water penetration according to GOST

IPX7

Operating mode according to GOST R IEC 60601-1-2022

prolonged

Average MTBF of the apparatus, hour, not less

1500

Average service life, years

Operating parts of the system

The ultrasonic transducer and stepper shall be type BF

Number of piezo elements, pcs.

192

Scanning depth (depends on the sensor)

3...15 cm

Sound power level generated by the system

Does not exceed 55 dBA

Type of protection against electric shock

Class I

Software safety class according to GOST IEC 62304-2022

Class B

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
