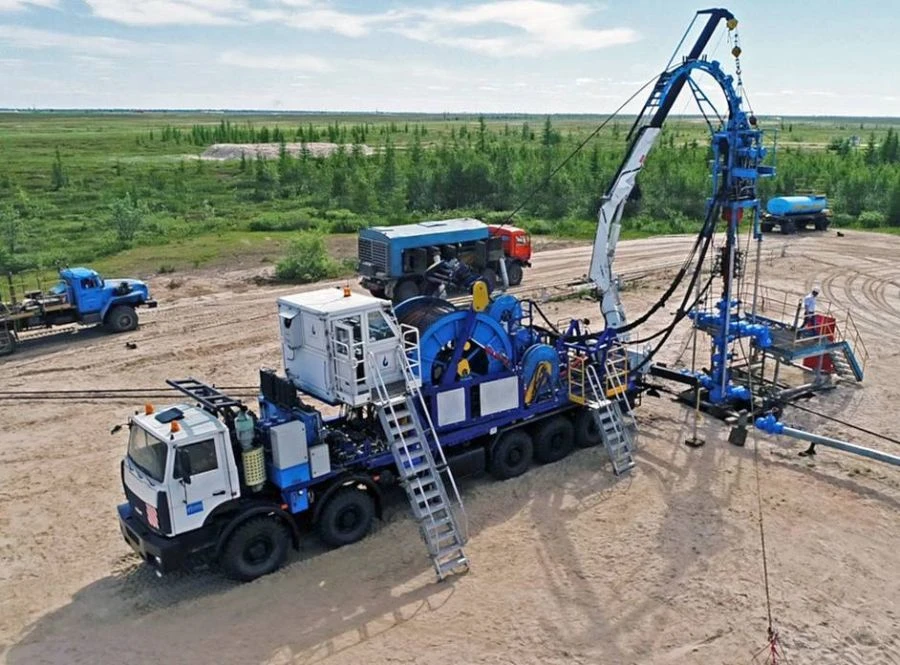

Coiled tubing unit for underground and workover wells UKRS-30

The coiled tubing rig of underground and workover wells "UKRS-30" is designed for downhole lifting operations at oil, gas and gas condensate wells during the following technological operations: <ul> <li>- direct and reverse flushing of the production string and bottomhole;</li> <li>elimination of various types of plugs and deposits inside the production string;</li> <li>injection of process fluids,</li> <li>working with downhole and trapping tools,</li> <li>drilling out cement plugs and other drilling operations,</li> <li>flushing and thawing of small-diameter pipelines in the internal infrastructure of oil and gas fields.</li> </ul> Technical characteristics of "UKRS-30": <ul> <li>- Chassis: MZKT-65276 10x10;</li> <li>Depth of descent:</li> </ul>o for DBT of 38.1 mm diameter, 5 500 m; o for 44.5 mm diameter DBT, 4 100 m; <ul> <li>- Maximum pulling force of the MF: 36 t.p.s.;</li> <li>Max. working pressure of the manifold: 70 MPa;</li> <li>Load moment of the equipment installer: 32 TM;</li> <li>Manifold equipment: preventer / sealer: 70MPa.</li> </ul>.
