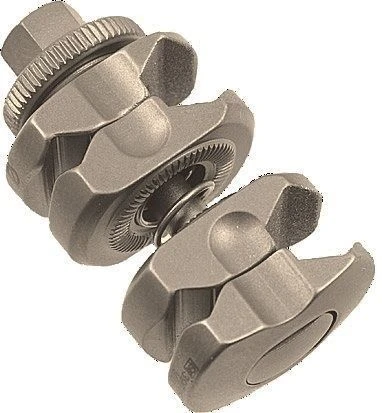

Combined Clamp "8" for Secure Multi-Point Tube and Rod Holding

The rod holder consists of 2 bars with 2-sided open type clamps. It is non-disassembling and provides one-step 8-point fixation of support tubes and 4-point fixation of Schanz rods, and allows their mutual movement in the range of 360?. All clamping and fixation units are spring loaded, the hexagonal locking nut has a stroke limiter and is non-drop out.

The lower and upper branche have spoon-shaped recesses on both sides, the inner spoons for the supporting tubes have an anti-slip coating. For Ø8mm tubes, for Ø4mm and Ø5mm rods. Spring-loaded, self-retaining.

Laser marking of the diameter of the components to be clamped.
