Combined Communication Channel Distributor RKS-k VABM.465.275.3

Available for Import

Combined Communication Channel Distributor RKS-k for Efficient Communication Systems

Telecom Equipment

Manufacturer: VENTUR-SERVICE LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

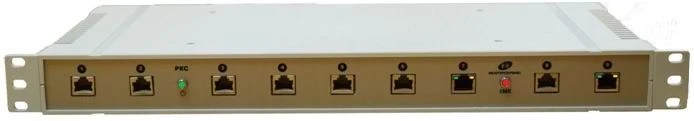

RKS-k is a distribution and switching device of the meeting communication equipment and is a part of the Backbone Communication Complex - MCC. The combined channel distributor (hereinafter referred to as RKS-k) is designed for use in subdivisions of corporate meeting communication networks with the number of directions up to 8 (up to 16 when using an expansion unit). It is possible to connect subscribers to the communication-meetings network via four-wire PM channels, telephone channels, Ethernet channels. Provided the possibility of remote setting, configuration and control of all the functions of the distributor.

Specifications

Number of communication directions

8 (16 - when using the expansion unit, the expansion unit is not included in the basic set)

Main unit construction

recessed 19" version, height - 1U

Supported connection interfaces

four-wire PM channel PRD/PRM - +4dB/-13dB; telephone communication channel; Ethernet communication channel using terminal subscriber communication devices with similar interface (MSR.E, UP.M.r, RKS-k with Ethernet adapter, etc.); Ethe connector

Four-wire PM channel PRD/PRM: rated input/output impedance

600 ohm

Four-wire PRD/PPM PM channel: nominal input/output signal level, dB

+4.3 - -13/ -13 - +4.3

Input/output signal level adjustment range, dB

±7

Noise cancellation threshold adjustment range, dB

-28…0

Telephone inputs/outputs ("line")

symmetrical with transformer isolation

Data transmission medium

local area network (Ethernet)

Connection protocol

TCP/IP

Reproducible frequency range, Hz

300-3500

Input supply voltage

? 220V/50Hz

Backup supply voltage

= 48?

Power consumption

not more than 100W

Output voltage and total current on contacts for supplying MSR.16 and MSR.D from RKS-k unit

48 V/ 0.63A

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
