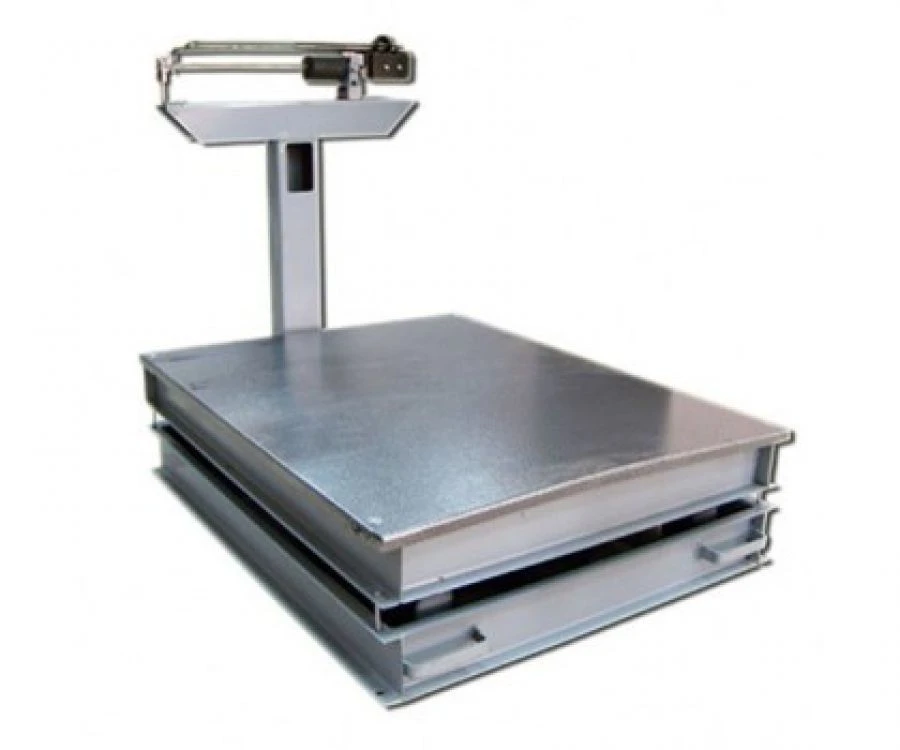

Commercial Scales VT 8908-500 for Accurate Static Weight Measurement

Commodity scales BT 8908 are designed for static measurements of the weight of various cargoes. The principle of operation of the scales is based on the balance of unequal levers - one of them receives the load from the weighed load, and the second - from the scale weight moving on the scale. Structurally, the scales consist of the following assembly units: frame, load-receiving platform, lever system, crown scale pointer and remote stand (for scales with a stand).

The frame of the scales is the body of the scales, inside of which the lever mechanism is placed. The load-receiving platform is used to place the weighed load on it. The lever system transmits forces from the load-receiving platform to the scale pointer.

The lever system transmits forces from the load-receiving platform to the scale pointer. The lever system transmits forces from the load-receiving platform to the scale pointer. The outrigger stand is used for fixing the scale pointer on it.

The scales are available in various modifications, which differ in maximum capacity.
