Compact Disc Harrow BDK-3x2N Available for Import

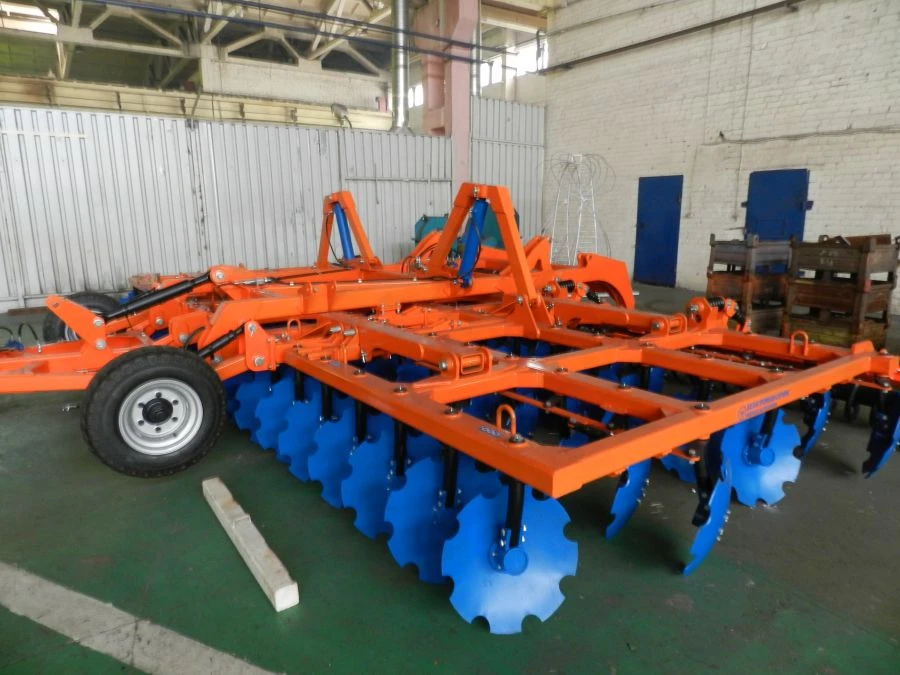

Compact Disc Harrow BDK-3x2N for Soil Preparation and Cultivation

Disc Harrows
Manufacturer: BELAGROMASH-SERVICE IM. V.M.RYAZANOVA OJSC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

Disc harrow - compact mounted is designed for traditional, minimum basic and pre-sowing tillage for cereals, industrial and forage crops, refreshing sodernelnyh meadows, stubble haying and reclamation of fallows. In one pass the harrow shreds and embeds plant residues of the predecessor and weed vegetation into the soil, creates a loosened and levelled soil layer, embeds applied fertilisers. A distinctive design feature of the harrow is that each disc is located on an individual axle. Each row of discs has the possibility to adjust the displacement of the discs in the rows. The disc acts as a ploughshare and mouldboard, which contributes to a better turnover of the cut layer, its crumbling, as well as reducing the required tractor pull.

Specifications

Type of product according to PP RF 616
Disc harrows
Distance between rows
850 mm
Weight
1800 kg
Number of implement rows
2 pcs
Material of working elements
09G2S steel
Material of frame structures
Steel 30MnB5
Harrow type
Hinged
Working width
3 m
Height
1530 mm
Length
2530 mm
Operating speed
10...12
Capacity per hour
3
Width
3120 mm
Number of working orans
24 pcs

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
