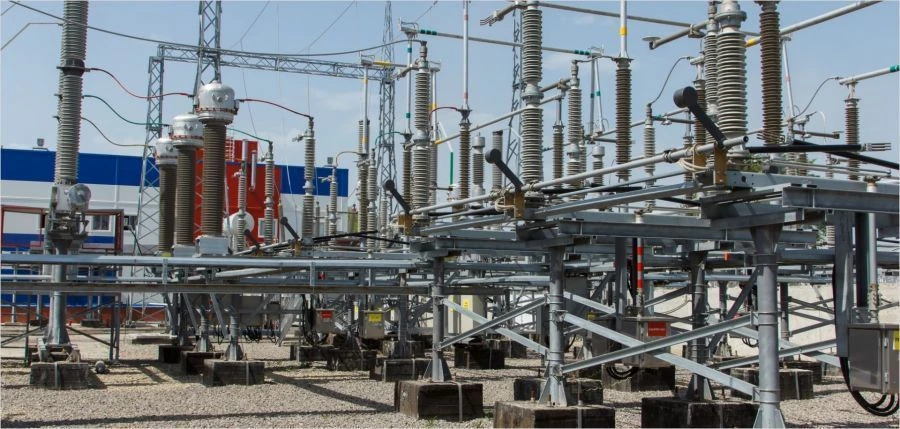

Available for ImportComplete Block-Type Transformer Substation KTPB-TE 6(10)-220 kV for Efficient Power Distribution
Manufacturer:T-ENERGY LLC
Price:Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
Complete transformer substation block KTPB-TE 6 kV, 10 kV, 35 kV, 110 kV, 220 kV is designed to receive, convert and distribute electrical energy of three-phase alternating current of industrial frequency 50 Hz in networks with a nominal voltage of 35 kV, 110 kV and 220 kV with the use of power transformers with a capacity of not more than 16 kVA.
KTPB-TE is manufactured at the own production site of LLC T-ENERGIA. The substation consists of:
- open or closed switchgears in block design or in the form of modules, with flexible and rigid wiring;
- power transformers;
- general substation control centre complete with relay protection, automation, telemechanics, communication panels, AC and DC auxiliary panels and other equipment.
KTPB-TE is manufactured at the own production site of LLC T-ENERGIA. The substation consists of:
- open or closed switchgears in block design or in the form of modules, with flexible and rigid wiring;
- power transformers;
- general substation control centre complete with relay protection, automation, telemechanics, communication panels, AC and DC auxiliary panels and other equipment.
Specifications
Type
Block/modular
Rated primary voltage; V
220000 V
Rated load current; A
3150 A
Compactness
equipment ru 35 kV is installed on compact blocks of own production of OOO "t-energia"; power and control cables are laid already during their manufacture (within the block). the blocks are completed with contt
High factory availability
The equipment is characterised by high factory readiness; the equipment is mostly installed during production; which considerably reduces time and costs for installation of the switchgear.
Multidimensionality
switchgear (ru) 6(10); 35; 110; 220 kV as a part of substation ktpb-tee can be made both open and closed. the advantage of the open variant is lower cost. the advantages of the closed variant are comp.
Customized execution
substations are realised both according to standard schemes (according to the work of Jsc "energoset-project" "schemes of electrical circuit diagrams of switchgears for voltage class 35-750 kV. standard solutions"); and according to non-standard schemes.
Share your requirements for a quick response!
Instant response in 15 minutes
Best wholesale prices guaranteed
Direct from manufacturer
Delivery & Payment
Shipping Terms
Delivery Time
Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)
Payment Methods
