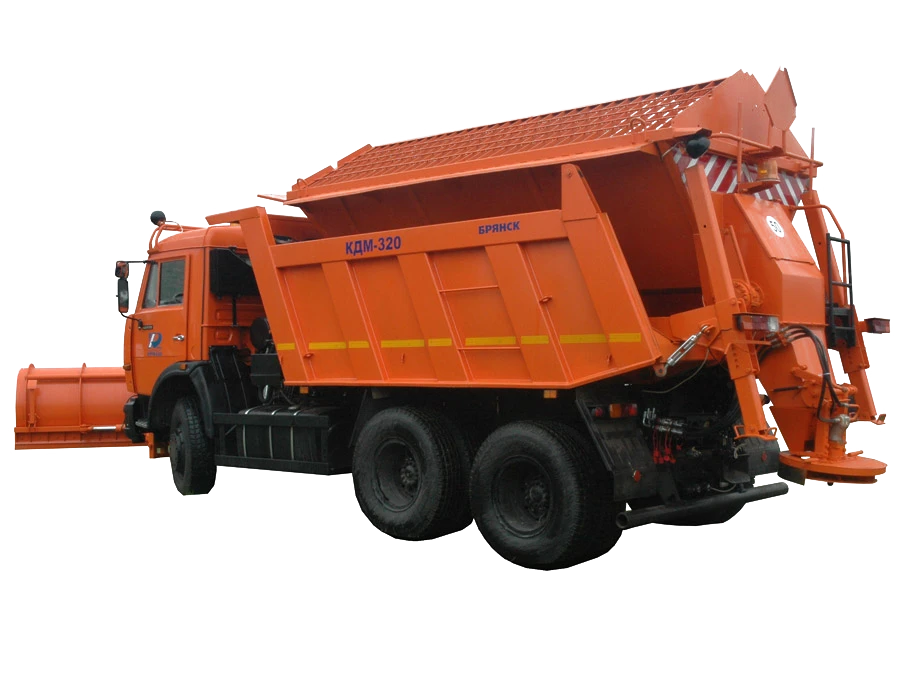

Comprehensive Road Maintenance Machine KDM-320-31 for Effective Road Management

Municipal Road Vehicles

Manufacturer: GKMP LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Designed for maintenance work on paved roads. The tipper platform is adapted for installation of equipment without the use of lifting means, for which purpose the equipment installed in the tipper body is equipped with a system consisting of four supports - two folding and two retractable. The tipper platform of the machine is equipped with units for securing the equipment installed on it. It is used for cleaning the roadway and shoulders from freshly fallen snow and slurry and distribution of solid anti-icing materials on the carriageway.

Specifications

Base chassis type

dump truck kamaz 65115 in modifications: 65115-a5; 65115-50; 65115-rr; 65115-rs

Type of product according to PP RF 616

Vehicles for public utilities and road maintenance

Type of equipment of the combined road machine

complete with sand spreading equipment and front mouldboard combi-blade

Machine type

complete road machine

Availability of air conditioning system

depending on the chassis purchased

Availability of heater

availability

Climatic version

UHL 1

Wheel arrangement

6?4

Rated motor power (her)

Flat grinder, Specialised grinder hp

Engine type

Diesel

Hopper capacity

7.4

Width of the strip to be cleaned

2.7...3.3 mm

Authorised maximum transport speed

Gross weight

24118 kg

Overall dimensions / length / length at maximum blade angle

10300/11010 mm

Overall dimensions / height

3550 mm

Overall dimensions / width / width at maximum blade angle

3350/3260 mm

Sand spreader / conveyor and spreader drive

Hydraulic

Sand spreader / spreading width

2...9 m

Sand spreader / spreading density per meter

5...500 year

Combination front blade / blade lift and swivel actuator

Hydraulic

Combination front blade / largest blade angle:

+/- 30 °

Combined front blade / weight, not more:

900 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
