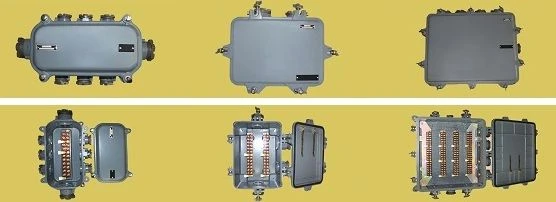

Connection Boxes Type SYA for Reliable Power Distribution in DC/AC Installations

Boxes connecting type ?? are designed for use in installations powered from a source of direct or alternating current voltage up to 250V and load up to 10A. It is allowed to use ??

in circuits of direct current up to 320V and alternating current up to 380V with connection through one terminal. Cable entry is carried out through glands. Outside the boxes have bolts for earthing of the case and columns for earthing of the screen of the cable.

Degree of protection according to GOST14140 - IP46 Nomenclature of connection boxes: No. Name of boxes Type Size, mm Weight, kg 1Connection box for 10 terminals ??10 304×140×99 2,5 2Connection box for 24 terminals ??24 344×274×141 6 3Connection box for 32 terminals ??32 428×298×141 7,8 4Connection box for 42 terminals ??42 498×298×141 9,2 5Connection box for 72 terminals ??72 504×414×141 13,7 6Connection box for 112 terminals ??112 582×470×141 18,5.
