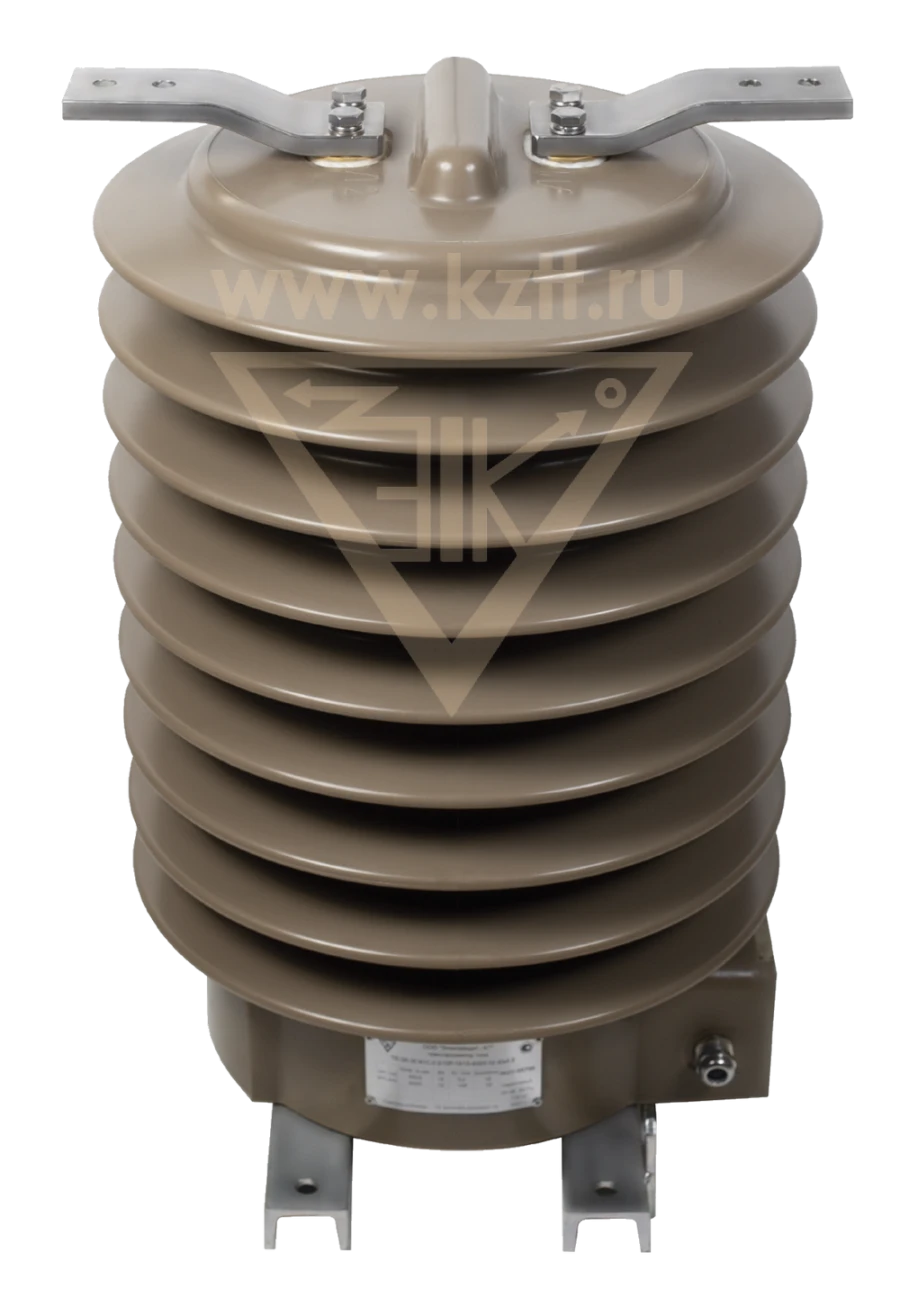

Current Transformer TL-EK-35 M1 for Outdoor Use

Available for Import

Current Transformer TL-EK-35 M1 for Accurate Power Measurement in Outdoor Applications

Low-Power Electrical Transformers

Manufacturer: ELECTROSHIT-K° LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

TL-EC-35 current transformer is designed for installation in complete switchgear (switchgear) outdoor installation and is a component product.Current transformer provides signal transmission of measurement information to measuring devices and devices for protection and control, to isolate the circuits of secondary connections from high voltage in electrical installations of alternating current for voltage class up to 35 kV.Climatic design UHL placement category 1, 1.1 according to GOST 15150-69.

Specifications

Accuracy classes of secondary windings for protection according to GOST R IEC 61869-2

5RR; 10RR; TPY; TPZ; PX; TPX; PX; PXR

Accuracy classes of secondary windings for protection according to GOST 7746

5P; 10P

Accuracy classes of secondary windings for measuring and metering according to GOST 7746

0,2S; 0,2; 0,5S; 0,5; 1; 3; 5; 10

Number of secondary windings

1 to 4

Highest operating voltage, kV

40,5

Rated voltage, kV

Built-in memory card slot, support microSD/SDHC/SDXC card (up to 256GB); manual recording/alarm recording

Rated primary current, A

5-1600

Rated secondary current, A

1; 5

Overall dimensions, (DxWxH), not more than

400x400x610
