Data Acquisition Module D002 for Analog to Digital Signal Conversion

Vibration Measurement Equipment

Manufacturer: GTLAB LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

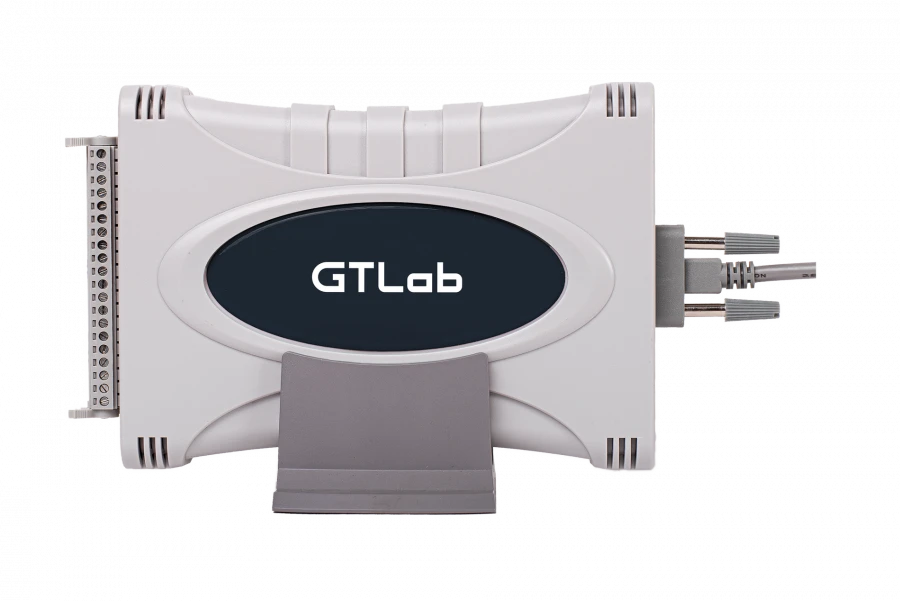

The data acquisition module is used for analogue-to-digital conversion of signals from sensors up to 600 kHz and for transferring the converted signal to a PC (registration, recording and digital post-processing). Connection via USB. Virtual instruments of GTL software (supplied with ADC): spectroanalyser (octave, third-octave, direct), reciprocal spectrum, envelope spectrum, oscilloscope, AFFC (amplitude-phase frequency response), modal analysis, octave analysis, AC and DC voltmeters, frequency meter, flexible filters of upper VLF and lower VLF frequencies (up to 50 orders), signal recording (time, level). The software is regularly updated. Always use the latest up-to-date version.

Specifications

ADC sampling frequency

2000 kHz

Interface

USB 2.0 (HighSpeed)

Operating temperature

0 ... +55 °?

Nutrition

USB

Frequency range

600 kHz

Measured DC and AC voltage ranges

± 10,000 mV

Number of ADC bits

16 bits

Input impedance

900 mOhm

GTL software features

? Oscilloscope; ? Spectroanalyser; ? Amplitude and phase frequency response; ? Modal analysis; ? AC voltmeter; ? DC voltmeter; ? Signal recording and reproduction; ? Flexible digital filters VLF, VHF, band-pass, band-rejector.

Type of product according to PP RF 616

Instruments and other instruments for measurement, control and testing

Number of analog inputs

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
