Directional Passive Log-Periodic Measuring Antenna KM6-600/6000 Available for Import

Directional Passive Log-Periodic Measuring Antenna KM6-600/6000 for RF Measurements

Antenna Equipment & Parts
Manufacturer: KROKS PLUS LLC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

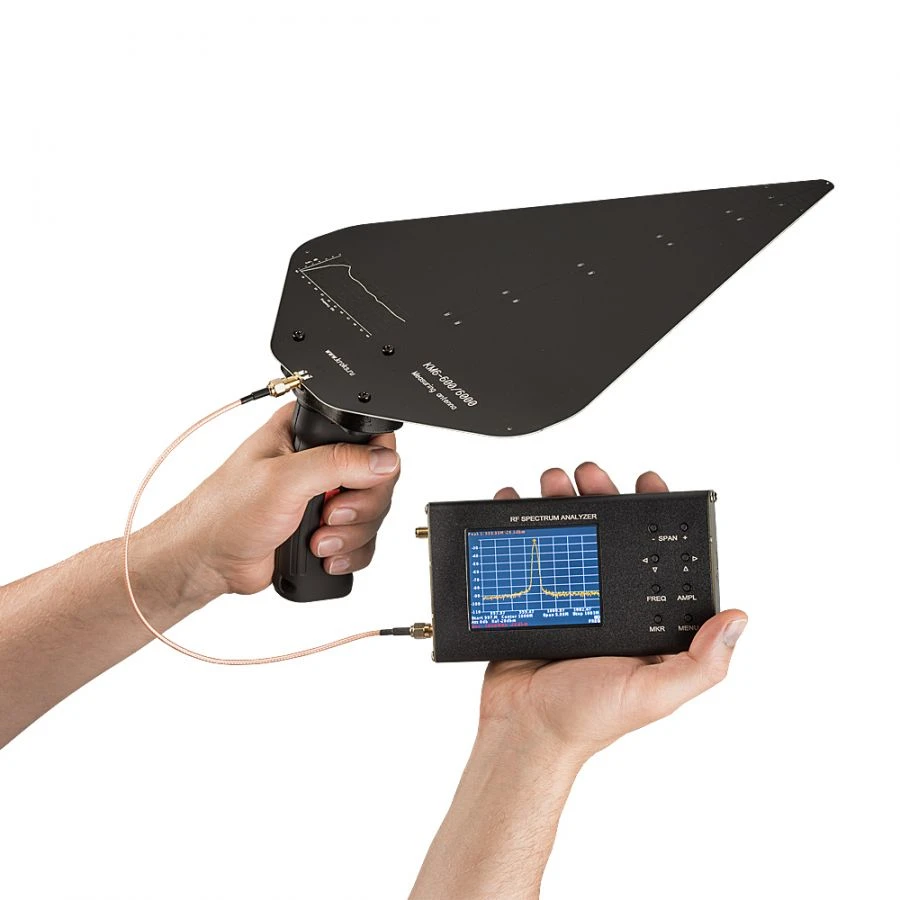

Directed passive logoperiodic measuring antenna KM6-600/6000 with gain up to 6 dB. It is intended for radio frequency measurements (measurement of field strength and amplitude direction finding of electromagnetic radiation sources) in the frequency range from 600 to 6000 MHz. The antenna has a regulated gain in the operating frequency range. It is recommended for the study of electromagnetic environment in a set with a spectrum analyser. The delivery set of the antenna includes a pigtail for its connection to a spectrum analyser or other receiving device.

Specifications

Polarization
linear
Connector
SMA-female
Weight
0.25 kg
Minimum value of the operating radio frequency range
600
Maximum value of the operating radio frequency range
6000
Gain factor
1...6.5
Standing wave coefficient (VSWR)
2.2
Input impedance
SBVVBG ohm
Maximum permissible power
10 W
Maximum wind load
108
MIMO support
no
Received signals
LTE 800, LTE 900 GSM 900 UMTS 900 GSM 1800 LTE 1800 UMTS 2100 WiFi 2400 LTE 2600 WiFi 5300 WiFi 5800
Type of execution
Multi-band
Length
370
Width
220
Height
140
Mark
Kroks

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
