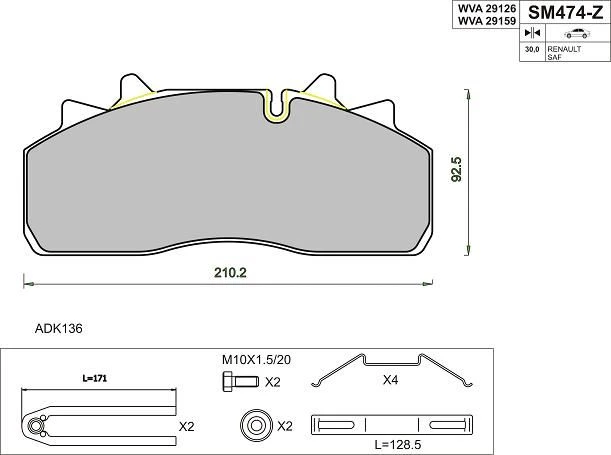

Disc Brake Pad for Trucks SAF, DENNIS, DAF, Wabco PAN 19-1 WVA 29159 - Reliable Stopping Power

Brake Pads and Linings

Manufacturer:ATI Plant OJSC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The disc type brake pad is used in buses, trucks and semi-trailers. The pad is a friction non-asbestos material moulded in a press mould and embedded on a metal frame. Method of manufacture: cold and hot moulding in a press mould at a certain pressure and temperature. The pad set consists of four pads and a mounting kit required for installation in the caliper. Tensile strength of the connection of the brake lining with the pad MPa , not less than 2.5.

Specifications

Tensile strength of connection between brake lining and shoe MPa

2.5

Compressibility, at room temperature, max.

2 %

Compressibility, at 400±10?C

5 %

Wear intensity at 200?C, 10 in 12 degree m3/J, not more than

0.23
